Rifle Parts Bolt Parts Bolt Carrier Groups FAXON FIREARMS 5.56X45 NATO LIGHTWEIGHT MIL-SPEC BCG NITRIDE CHAMELEON PVD Support

The Faxon AR-15 Lightweight BCG is ultra-light at 8.5 oz, made from MIL-SPEC materials, corrosion-resistant, and compatible with full-auto systems.

FAXON FIREARMS 5.56X45 NATO LIGHTWEIGHT MIL-SPEC BCG NITRIDE CHAMELEON PVD

816341024663 100030948

Filters:

Variations
Filters:
Variations:

Variations:

The Faxon AR-15 Lightweight BCG is ultra-light at 8.5 oz, made from MIL-SPEC materials, corrosion-resistant, and compatible with full-auto systems.
AR-15 LIGHTWEIGHT 5.56 BOLT CARRIER COMPLETE - 5.56X45 NATO LIGHTWEIGHT MIL-SPEC BCG NITRIDE CHAMELEON PVD
389.9 GBP 3 £389.90 *
Not available
Cartridge: 5.56 mm NATO Finish: Chameleon Make: AR-15 Product no.: 100030948
Not available
389.9 GBP 3 £389.90 *
Experience the lightweight strength of the Faxon AR-15 BCG, featuring QPQ nitriding, MIL-SPEC materials, and full-auto compatibility for reliable performance.
AR-15 LIGHTWEIGHT 5.56 BOLT CARRIER COMPLETE - 5.56X45MM NATO LIGHTWEIGHT MIL-SPEC BCG NITRIDE BLACK
329.9 GBP 21 £329.90 *
Not available
Product no.: 100022858
Not available
329.9 GBP 21 £329.90 *
The Faxon Firearms AR-15 Lightweight BCG is an 8.5 oz MIL-SPEC component featuring QPQ Nitride for durability, full-auto compatibility, and enhanced reliability.
AR-15 LIGHTWEIGHT 5.56 BOLT CARRIER COMPLETE - 5.56X45MM NATO LIGHTWEIGHT MIL-SPEC BCG NITRIDE TIN PVD
389.9 GBP 9 £389.90 *
Not available
Cartridge: 5.56 mm NATO Finish: Titanium Nitride Make: AR-15 Product no.: 100030947
Not available
389.9 GBP 9 £389.90 *
329.9 389.9 3 GBP
389.9 GBP £389.90

Prices inclusive of duty & VAT.

Product no.: 100030948

Mfr. No.: FF556BCGCNITRIDE-LW-NCR

816341024663 Faxon Firearms set out to create a bolt carrier group that could live up to the GUNNER name with no compromise in strength or function. They set specifications that would allow no compromise: Lightest Weight Possible (8.5 Ounces Complete) MIL-SPEC Materials & Finishes or Better! Forward Assist Serrations Compatible with Dust Covers Maintains Full-Auto Trip Sear for full-auto and the new multi-stage trigger functionality Looks Amazing Matching their barrels, they selected the QPQ method of Salt Bath Nitride for all the carriers’ components. By coating all parts, the carrier's natural slickness is increased markedly requiring less gas and pressure to operate. Further, the QPQ SBN process seals components against corrosion while making them fantastically wear resistant. Improvements include using 9310 tool steel for the bolt, which is stronger and nitriding the assembly to increase surface hardness, decrease resistance, and have superior corrosion resistance compared to typical chrome and phosphasted bolt carrier groups. All bolts are fully MPI tested to ensure the material is sound and without defects. Bolt lugs are chamfered 45 degrees to ensure reliable action for even the highest pressure hand loads and fast lightweight actions. Faxon Bolt Carrier Groups are Superfinished to reduce friction, increase smoothness of operation, and reduce fouling. Further, they are full-Auto rated and maintain the trip for full-auto fire control groups and new multi-stage trigger systems. Gas keys use grade 8 fasteners and are fully staked for a lifetime of service. As a testament of our confidence, the carriers are all laser-engraved with the Faxon Shield after passing all Quality inspections. DETAILED SPECIFICATIONS: Bolt: 9310 Tool Steel Construction (Stronger than C158) Full MIL-SPEC Heat Treatment Shot Peened to MIL-SPEC Magnetic Particle Inspection (MPI) Back of Lugs Chamfered for Reliability Spring, Insert, & "Crane" O-Ring Installed QPQ - Salt Bath Nitrided Extractor: S7 Tool Steel Construction Fully Heat Treated Shot Peened Per MIL-SPEC QPQ - Salt Bath Nitrided Carrier & Key: Superfinished Carrier Carrier: MIL-SPEC 8620 Steel Material Key: 4140 Steel Material Fully Heat Treated Forward Assist Serrations M16 (FULL-AUTO) Compatible Grade 8 Fasteners Fully & Properly Staked Key, Permatex Sealed QPQ - Salt Bath Nitrided Weight w/ Key (Not Bolt or any Pins): 6.32 Ounces Cam Pin: 4140 Pre-Hardended Steel Material QPQ - Salt Bath Nitrided
Not available
5/5 - 1 Customers

Not available.

100-Day Return Policy
No charges until we ship
No charge:
Your credit card will not be charged when you place your order.

No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.

Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
Wish List Ask question
order by phone
329.9 389.9 3 GBP
Description Specification Customers reviews Accessories

FAXON FIREARMS 5.56X45 NATO LIGHTWEIGHT MIL-SPEC BCG NITRIDE CHAMELEON PVD

389.9 GBP £389.90

Prices inclusive of duty & VAT.

Is a 'Call to order' product.
Requires order by phone

Description:

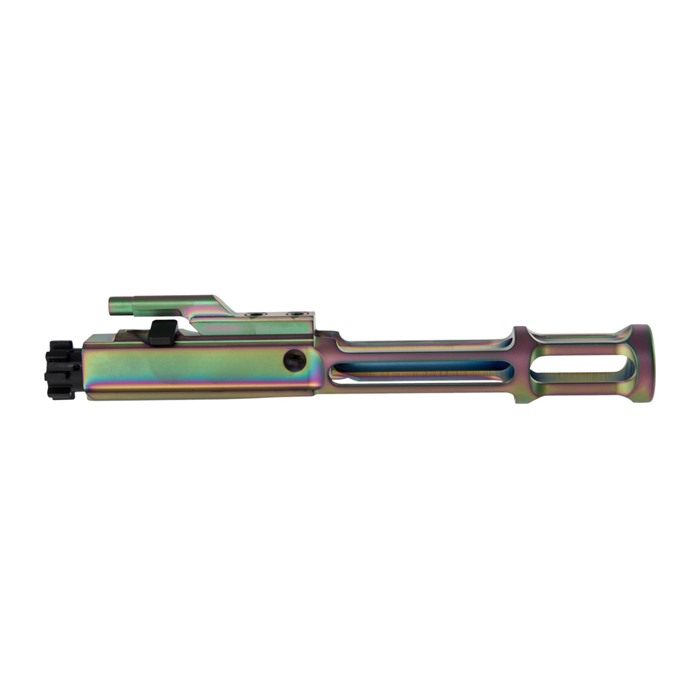

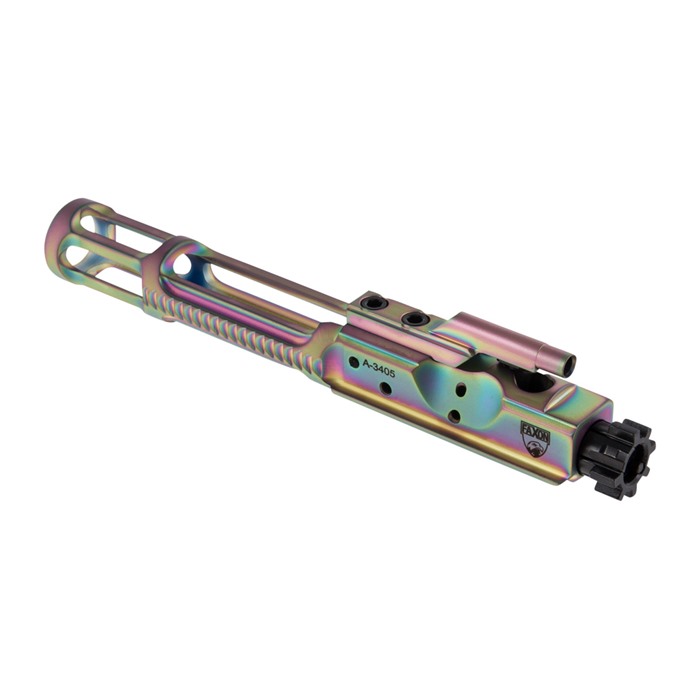

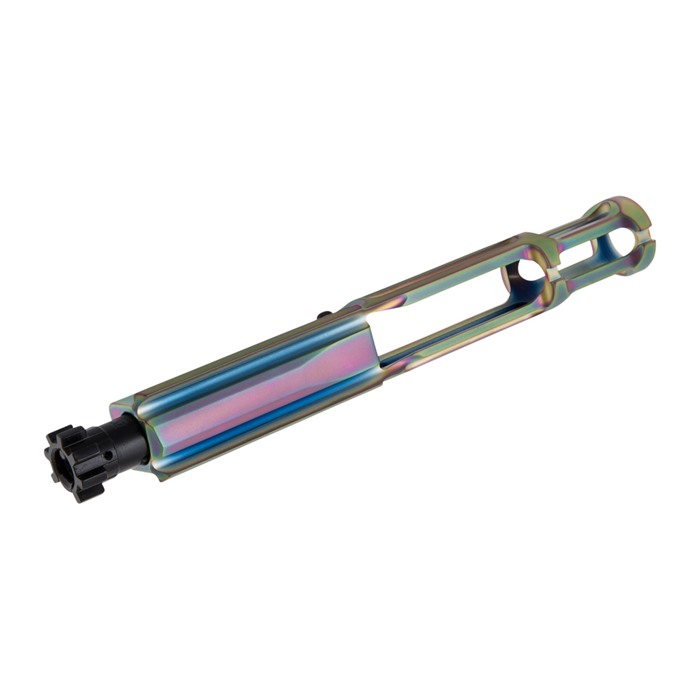

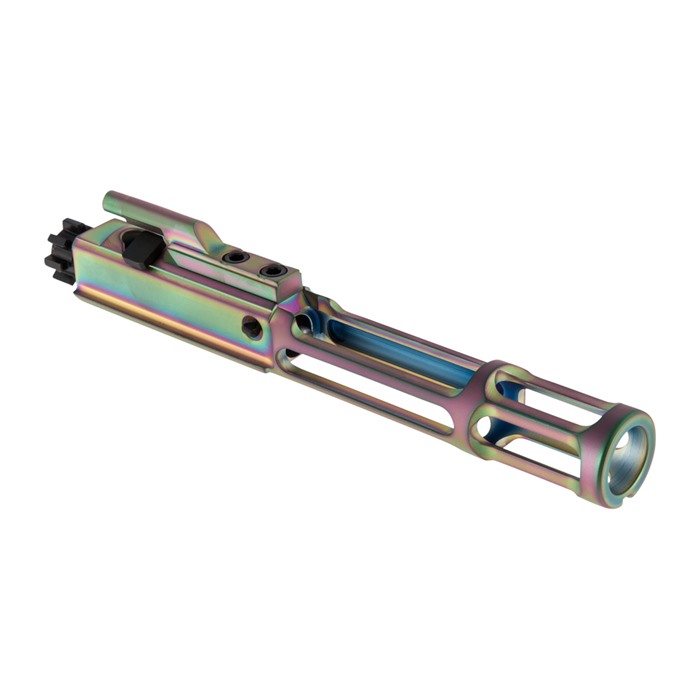

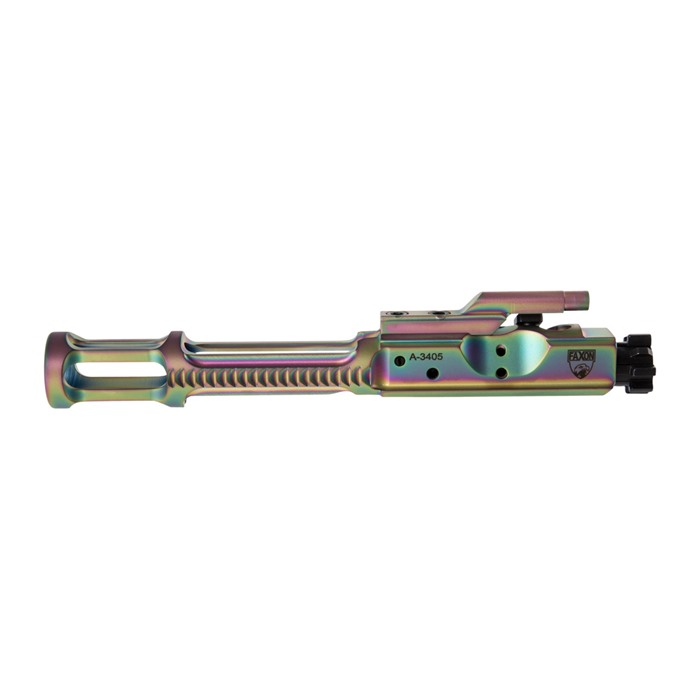

Introducing the AR-15 Lightweight 5.56 Bolt Carrier Complete from Faxon Firearms

Faxon Firearms has engineered a bolt carrier group that truly embodies the GUNNER name, offering unmatched strength and functionality without compromise.

Key Features:

  • Lightest Weight: Only 8.5 ounces complete
  • MIL-SPEC Materials: Crafted from high-quality materials and finishes
  • Forward Assist Serrations: Enhanced usability
  • Compatible with Dust Covers: Versatile design
  • Full-Auto Trip Sear: Maintains functionality for full-auto and multi-stage trigger systems

To complement their barrels, Faxon has selected the QPQ method of Salt Bath Nitride for all carrier components. This coating significantly enhances the carrier's natural slickness, requiring less gas and pressure to operate. Additionally, the QPQ SBN process seals components against corrosion while providing exceptional wear resistance.

Improved Durability:

The bolt is made from 9310 tool steel, which is stronger than C158, and the assembly is nitrided to increase surface hardness, reduce resistance, and enhance corrosion resistance compared to standard chrome and phosphated bolt carrier groups. All bolts undergo full Magnetic Particle Inspection (MPI) to ensure material integrity and defect-free performance.

Enhanced Performance:

  • Chamfered Bolt Lugs: 45 degrees for reliable action, even under high pressure
  • Superfinished Bolt Carrier Groups: Reduces friction and increases operational smoothness
  • Full-Auto Rated: Compatible with full-auto fire control groups
  • Grade 8 Fasteners: Ensures longevity with fully staked gas keys

As a testament to their quality, all carriers are laser-engraved with the Faxon Shield after passing rigorous quality inspections.

Detailed Specifications:

  • Bolt: 9310 Tool Steel Construction, Full MIL-SPEC Heat Treatment, Shot Peened to MIL-SPEC, Magnetic Particle Inspection (MPI), Back of Lugs Chamfered for Reliability, Spring, Insert, & "Crane" O-Ring Installed, QPQ - Salt Bath Nitrided
  • Extractor: S7 Tool Steel Construction, Fully Heat Treated, Shot Peened Per MIL-SPEC, QPQ - Salt Bath Nitrided
  • Carrier & Key: Superfinished Carrier, MIL-SPEC 8620 Steel Material, Key: 4140 Steel Material, Fully Heat Treated, Forward Assist Serrations, M16 (FULL-AUTO) Compatible, Grade 8 Fasteners, Fully & Properly Staked Key, Permatex Sealed, QPQ - Salt Bath Nitrided
  • Weight w/ Key: 6.32 Ounces (Not Bolt or any Pins)
  • Cam Pin: 4140 Pre-Hardended Steel Material, QPQ - Salt Bath Nitrided

Upgrade your firearm with the AR-15 Lightweight 5.56 Bolt Carrier Complete from Faxon Firearms, where quality and performance meet.



Restrictions

  • Is a 'Call to order' product.

Top takeaways

  1. Faxon Firearms' AR-15 Lightweight 5.56 Bolt Carrier is designed for no compromise in strength or function, featuring light weight (8.5 ounces complete), MIL-SPEC materials and finishes, and compatibility with forward assist serrations and dust covers.
  2. The carrier components are QPQ Salt Bath Nitrided for increased slickness, wear resistance, and corrosion protection, with a superfinished carrier to reduce friction and fouling.
  3. The bolt is made from 9310 tool steel, stronger than C158, and includes a shot-peened and MPI tested construction with chamfered lugs for reliability, while the gas keys are grade 8 fasteners, fully staked for durability.

Attributes

  • Cartridge:
    5.56 mm NATO
  • Finish:
    Chameleon
  • Weapon type:
    AR-15
  • Delivery weight: 0.272kg
  • Shipping height: 25mm
  • Shipping width: 102mm
  • Shipping length: 279mm
  • UPC: 816341024663

Item details

Made in USA
US export classification: I(g)

Customers reviews

Customer ratings (1)

5 / 5
Definitely recommended

Brownells USA Works perfectly. 28/12/2016

I wanted a light weight, nitride BCG. I don't need it to do anything magical like so many specialty coatings promise. I needed my gun to be light weight, shoot straight, feed properly, and eject properly. This BCG took care of all of that. I highly recommend it. I paired it up with the mid-weight Faxon Gunner Barrel too. Both turned out great.
