Experience unmatched precision with PROOF Research's 30 Caliber stainless steel barrels, crafted from 416R for exceptional accuracy and durability.

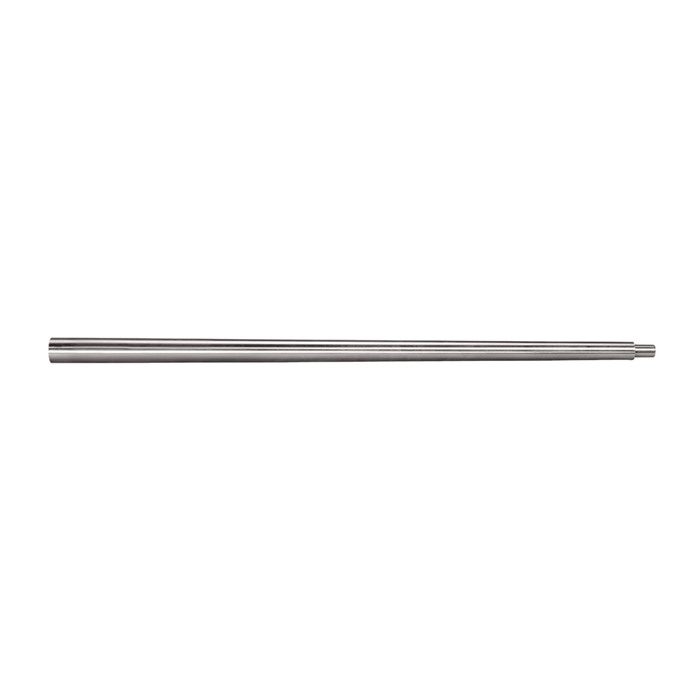

PROOF RESEARCH 30 CALIBER 1-10 TWIST 28" STAINLESS STEEL M24 BARREL

843068107584 100046270

Filters:

Variations

Filters:

Variations:

Experience unmatched precision with PROOF Research's 30 Caliber stainless steel barrels, crafted from 416R for exceptional accuracy and durability.

BOLT-ACTION 30 CALIBER STAINLESS STEEL BARRELS - 30 CALIBER 1-10 TWIST 28" STAINLESS STEEL M24 BARREL

529.9 GBP 0 £529.90 *

Backorderable

Barrel Weight: 6.9 lbs Cartridge: 30 Caliber (.308) Contour: M24 Finish: Stainless Steel Length: 28'' Twist: 1-10 Product no.: 100046270

Backorderable

529.9 GBP 0 £529.90 *

Experience unmatched accuracy with PROOF Research's 30 caliber stainless steel barrels, expertly crafted from 416R for precision and durability.

BOLT-ACTION 30 CALIBER STAINLESS STEEL BARRELS - 30 CALIBER 1-9 TWIST 28" STAINLESS STEEL COMPETITION BBL

529.9 GBP 0 £529.90 *

Backorderable

Barrel Weight: 7.10 lbs Cartridge: 30 Caliber (.308) Contour: Competition Finish: Stainless Steel Length: 28'' Twist: 1-9 Product no.: 100046269

Backorderable

529.9 GBP 0 £529.90 *

529.9 529.9 2 GBP

529.9 GBP £529.90

Prices inclusive of duty & VAT.

Product no.: 100046270

Mfr. No.: 107584

843068107584 Your bolt-action barrel will arrive ready for thread and chamber by your gunsmith. When PROOF Research joined with Lawrence Barrels in 2012, they acquired 15 years of experience in manufacturing precision steel barrels. PROOF now manufactures stainless steel barrels in-house with an absolute commitment to extreme accuracy and quality. They start with double stress-relieved 416R stainless steel, a pre-hardened chromium stainless steel ideally suited for use in precision, match-grade rifle barrels. 416R was specifically designed by engineers in collaboration with barrel makers and rifle manufacturers to provide the consistency, high quality and durability the firearms industry demands. 416R is the material of choice because it has the following characteristics: Excellent machinability for gun drilling and reaming, plus exceptional polishability for uniform lapping—a must for bore accuracy. A homogeneous microstructure which responds to heat treatment providing a uniform hardness along the length of the bar, necessary for accurate rifling to precise groove dimensions. An optimum combination of high tensile strength along with adequate toughness to withstand typical chamber pressures encountered during firing. 416R arrives at the factory in long lengths and is then cut to finished barrel length. The barrels are then drilled, contoured and reamed to the bore diameter of the cartridge for which they are to be chambered. The barrels are then rifled, hand lapped and individually inspected with a bore scope.

Backorderable

Backorderable, delivery time approx. 4-12 weeks from the USA warehouse.

100-Day Return Policy

No charges until we ship

No charge:
Your credit card will not be charged when you place your order.

No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.

Not until shipping:
Your credit card will only be charged once we ship your order. Not before.

Wish List Ask question

order by phone

529.9 529.9 2 GBP

Description Specification Customers reviews Accessories

PROOF RESEARCH 30 CALIBER 1-10 TWIST 28" STAINLESS STEEL M24 BARREL

529.9 GBP £529.90

Prices inclusive of duty & VAT.

Is a 'Call to order' product.

Requires order by phone

Description:

Precision-engineered barrels for ultimate accuracy

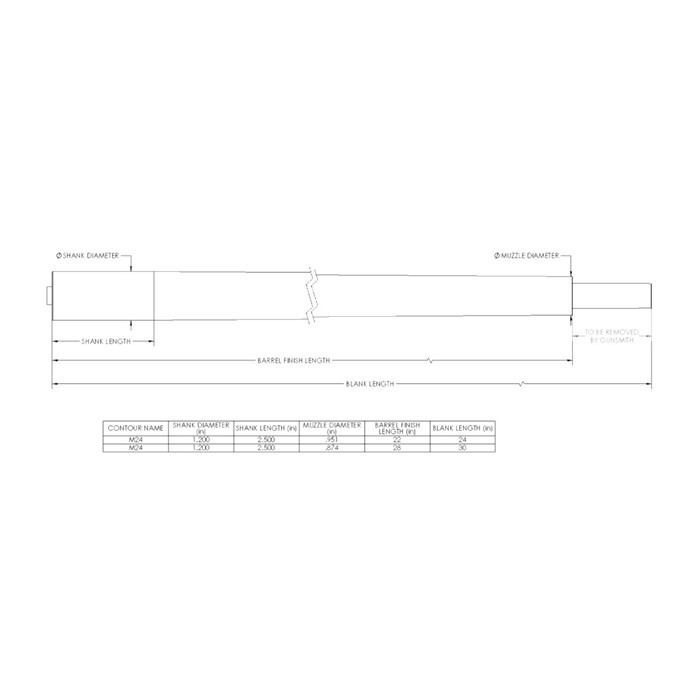

Your bolt-action barrel will arrive ready for thread and chamber by your gunsmith.

When PROOF Research joined with Lawrence Barrels in 2012, they acquired 15 years of experience in manufacturing precision steel barrels. PROOF now manufactures stainless steel barrels in-house with an absolute commitment to extreme accuracy and quality.

They start with double stress-relieved 416R stainless steel, a pre-hardened chromium stainless steel ideally suited for use in precision, match-grade rifle barrels. 416R was specifically designed by engineers in collaboration with barrel makers and rifle manufacturers to provide the consistency, high quality and durability the firearms industry demands.

416R is the material of choice because it has the following characteristics:

Excellent machinability for gun drilling and reaming, plus exceptional polishability for uniform lapping—a must for bore accuracy.
A homogeneous microstructure which responds to heat treatment providing a uniform hardness along the length of the bar, necessary for accurate rifling to precise groove dimensions.
An optimum combination of high tensile strength along with adequate toughness to withstand typical chamber pressures encountered during firing.

416R arrives at the factory in long lengths and is then cut to finished barrel length. The barrels are then drilled, contoured and reamed to the bore diameter of the cartridge for which they are to be chambered. The barrels are then rifled, hand lapped and individually inspected with a bore scope.

Restrictions

Is a 'Call to order' product.

Top takeaways

PROOF Research barrels are made from 416R stainless steel for precision and durability, suitable for match-grade rifle barrels.
The barrels undergo extensive processing, including drilling, reaming, rifling, and hand lapping, ensuring extreme accuracy and quality.
Each barrel is 28 inches long, has a 1-10 twist rate, and is designed for .30 caliber cartridges, weighing 6.9 lbs with an M24 contour.

Attributes

Barrel Weight:
```
6.9 lbs
```
Cartridge:
```
30 Caliber (.308)
```
Contour:
```
M24
```
Finish:
```
Stainless Steel
```
Length:
```
28''
```
Twist:
```
1-10
```
Delivery weight: 3.348kg
Shipping height: 76mm
Shipping width: 89mm
Shipping length: 838mm
UPC: 843068107584

Item details

Made in USA
US export classification: 0A501.c
