Fully Adjustable Spring System Cushions Your Shoulder

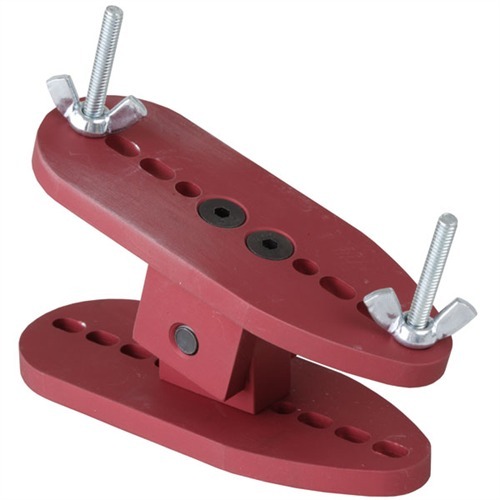

Firmly secures GraCoil, Graco Adjustable Butt Plates, recoil pads, or other butt plate hardware while cutting and grinding to proper size and contours. Unique design lets you remove most of the excess material quickly with a band saw, while preventing damage to the part caused by excessive heat buildup from prolonged grinding. Allows you to set the correct heel and toe angles of butt pads and hold them while grinding. Multiple screw holes in the mounting plates provide compatibility almost all types of hardware and recoil pads.
SPECS: Aluminum, anodized, matte red. 4" (10.2cm) long, 1½" (3.8cm) wide, 1-13⁄16" (4.6cm) high. Includes mounting hardware and Allen wrench.
More...
Customer ratings for GRACO CORP GRACOIL UNIVERSAL FITTING FIXTURE
Number of ratings: 5
From brownells.com: 5
Average rating: 4.6
Want a professional looking pad?(13/11/2009)
This fixture is terrific. Having no experience fitting new recoil pads to my shotguns, I was able to get a factory look to my pads. The very FIRST time. Simple instructions, and a simple jig made it possible for me, with little mechanical skills, to get it right.
Best in Show(29/05/2012)
I have owned several of these jig through the years and they all were made by other manufacturers. This is by far the best one I have ever seen and is so rugged that it will probably be the last one I will ever need to buy. The instructions that come with it are weak, but if you are a gunsmith you know how to install a recoil pad already.
Best yet(16/11/2012)
Very easy to use. The best I have used in my shop so far.
GraCoil Universal Fitting Fixture (21/01/2015)
Easy to use tool to fit your recoil pad to your stock. After you've scribed the flat surface of the recoil pad by tracing the end of your stock... Simply adjust the width of the two retaining posts to the exact width of the holes in your recoil pad. Place the pad face down on the fixture, tighten the wing nuts to secure the pad for grinding. Carefully grind the pad to the scribed line. To profile the toe of the pad, simply adjust the angle of the fixture to duplicate the stock profile.
The tool is easy to use, very effective ,efficient and makes a nice finished product.
basically good, could be much better(09/04/2016)
Mounted three soft pads this week. Hard flat plate against soft, concave pad face makes NO SENSE! Proper fixture would mount to pad plate and allow adjustment for concave butt mounting.
Product no.: 352000012 GRACO CORP GRACOIL UNIVERSAL FITTING FIXTURE Mfr Part: FF15 Firmly secures GraCoil, Graco Adjustable Butt Plates, recoil pads, or other butt plate hardware while cutting and grinding to proper size and contours. Unique design lets you remove most of the excess material quickly with a band saw, while preventing damage to the part caused by excessive heat buildup from prolonged grinding. Allows you to set the correct heel and toe angles of butt pads and hold them while grinding. Multiple screw holes in the mounting plates provide compatibility almost all types of hardware and recoil pads.
Firmly secures various butt plate hardware, including GraCoil and Graco Adjustable Butt Plates, for safe cutting and grinding.
Unique design allows for quick material removal with a band saw and prevents heat damage during grinding.
Features multiple screw holes for compatibility with a wide range of hardware and recoil pads, and allows for angle adjustments.
Attributes
Make:
Universal Shotguns
Delivery weight: 0.227kg
Item details
Made in USA
🔧 Perfect your shotgun's recoil pad fit with the GRACO Universal Fitting Fixture! Anodized aluminum for durability. Get started on a precise fit now! 🔫
