BROWNELLS
RECEIVER FACING CUTTER & PILOTS

050806005709 080000194

Description
Ratings (4)

Trues The Receiver Face For A Highly Accurate Rifle; Eliminates Lathe Work

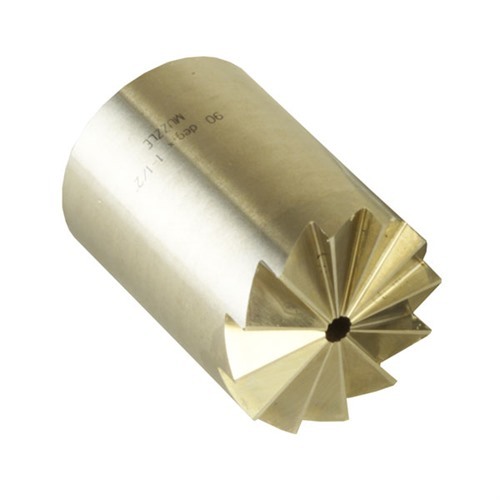

Hardened steel cutter and pilots provide the perfect combo for accurizing Remington 700 and AR-15 actions without a lathe. Large, 1½" diameter cutter squares the receiver face to the boltway for precise mating to the barrel. Twelve, 90° flutes deliver even pressure and a smooth, chatter-free cut when used with Brownells Muzzle Facing & Chamfering T-Handle, shown below, or our Drill Chuck Adaptor. .700” diameter pilot fits factory-original, Remington 700 receivers.

SPECS: Hardened steel, polished finish. Cutter - 90°, 2" (5.1cm) long x 1½" (3.8cm) O.D. Pilots - 2" long x .700" (17.8mm) or 1" (25.4mm) O.D.

More...

Customer ratings for BROWNELLS 1.5" RECEIVER FACING CUTTER

Number of ratings: 4
From brownells.com: 4
Average rating: 2

Why be cheap ? (21/09/2013)

Recently purchased the facing cutter and pilot for a remington 700. My comment is this. Why not make the pilot 7 inches long rather than the 2 5/8. This would be a much more accurate method. Fortunately I have access to a lathe and made my own pilot. Worked great! The pilot that I purchased could not and did not offer the precision that my "homemade one" did. P.S. the cutter worked beautifully and would highly recommend.

Does not fit the raceway (25/01/2015)

I would recommend pilot should be manufactured to fit the PTG .500 ID variable OD .700 - .705 raceway bushings. Or, make variable sizes in your style. One size .700 which you offer does not work because the raceway size differs in Rem 700 receivers. Once you figure that out Ill buy them. Thank you. Military Gunsmith 2112.

Be careful... (08/03/2014)

I use Brownell's cutters and pilots for all my muzzle crowns, and have had outstanding success... Because of this cutter/pilot setup working so well, I thought I'd try this unit.
First off, the pilot (.700) was way too loose in my Remington short action receiver. When I put the pilot in the rear of the receiver, it is good and snug, but the front gives way too much variance.
Next, I tried it in a Remington long action, and while it was better, it still offered enough side to side play to make me extremely nervous.
I applied layout fluid to the outside ring, and began cutting.. It started removing metal from the outside edge first, and ended with a nicely cut, smooth surface... however, I have no way of knowing if this is square.. I thought of installing a set screw in the front action screw hole, to keep the pilot snug against the upper ring, but again, not sure if that would end up with a square cut or not. This problem could easily be fixed if the pilot were long enough to go through the entire receiver, allowing both rings to center it.
Next, I tried the AR-15 (1") pilot. In both AR uppers I had laying around, a Daniel Defense flattop and a Colt A2, the pilot was too large to fit into the receiver! It will fit into the rear of the receivers, but the section that covers the barrel extension is too tight on both receivers for this pilot.
Be sure to securely clamp your receiver in a vertical position, first to let the cutter cut under its own weight, gravity helping to keep solid pressure, and second to avoid chatter marks. You will get tooling/chatter marks if you try to cut a receiver that isn't solidly mounted down.
One good thing is that the cutter accepts the same pilots that the crown cutters do, so this cutter can also be used as a 90 degree crown cutter, which is useful for large muzzles (.900" and up).
Looks like I'm going to have to sell some stuff to purchase the Manson accurizing kit - since I cannot afford $4000+ for a quality lathe.

Does the job (26/01/2017)

I've used this facing cutter on two Remington 700 receivers. It "chatters" very easily. I used several different lubricants on my on my first one, settling on STP oil treatment. But wasn't fully satisfied with it. On the second 700 receiver, I tried generous amounts of DAWN dishwashing liquid as a lubricant. It worked GREAT! I still had to work very slowly and pay careful attention to every move, but hey , that is part of the enjoyment of playing with guns.

Read 4 more ratings on brownells.com

23.9 79.9 3 GBP

Product no.: 080000194
BROWNELLS 1.5" RECEIVER FACING CUTTER 050806005709 Hardened steel cutter and pilots provide the perfect combo for accurizing Remington 700 and AR-15 actions without a lathe. Large, 1½" diameter cutter squares the receiver face to the boltway for precise mating to the barrel. Twelve, 90° flutes deliver even pressure and a smooth, chatter-free cut when used with Brownells Muzzle Facing & Chamfering T-Handle, shown below, or our Drill Chuck Adaptor. .700” diameter pilot fits factory-original, Remington 700 receivers.

79.9 GBP 1 £79.90 *

Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse

Specs: Make: Remington Model: 700

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The RECEIVER FACING CUTTER & PILOTS by BROWNELLS is designed specifically for accurizing Remington 700 and AR-15 actions without needing a lathe.
Features a large, 1½" diameter hardened steel cutter with twelve 90° flutes for a smooth, even cut, compatible with Brownells tools or a drill chuck adaptor.
Includes a .700” diameter pilot that fits factory-original Remington 700 receivers, ensuring precise mating to the barrel.

Attributes

Make: Remington Model: 700 Delivery weight: 0.454kg Shipping height: 25mm Shipping width: 18mm Shipping length: 64mm UPC : 050806005709

Item details

Made in USA

Product no.: 080000195
BROWNELLS 1" RECEIVER FACING PILOT 050806005716 Hardened steel cutter and pilots provide the perfect combo for accurizing Remington 700 and AR-15 actions without a lathe. Large, 1½" diameter cutter squares the receiver face to the boltway for precise mating to the barrel. Twelve, 90° flutes deliver even pressure and a smooth, chatter-free cut when used with Brownells Muzzle Facing & Chamfering T-Handle, shown below, or our Drill Chuck Adaptor. .700” diameter pilot fits factory-original, Remington 700 receivers.

23.9 GBP 3 £23.90 *

Delivery time approx. 7-14 days.
3 pcs. in the USA warehouse

Specs: Make: Universal Rifles

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Product no.: 080000197
BROWNELLS .700" RECEIVER FACING PILOT 050806005723 Hardened steel cutter and pilots provide the perfect combo for accurizing Remington 700 and AR-15 actions without a lathe. Large, 1½" diameter cutter squares the receiver face to the boltway for precise mating to the barrel. Twelve, 90° flutes deliver even pressure and a smooth, chatter-free cut when used with Brownells Muzzle Facing & Chamfering T-Handle, shown below, or our Drill Chuck Adaptor. .700” diameter pilot fits factory-original, Remington 700 receivers.

27.9 GBP 0 £27.90 *
