L.E. WILSON
RIFLE CASE HOLDERS

749011924

Description
Ratings (20)

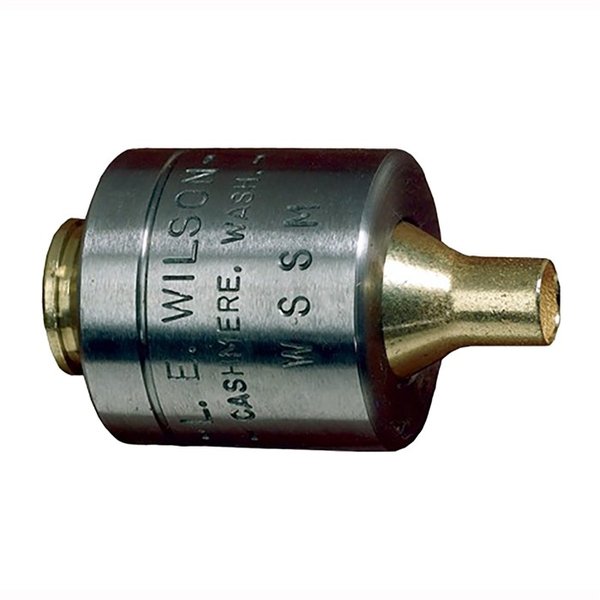

The L.E. Wilson Rifle Case Holder holds the case for trimming, primer pocket reaming, neck reaming and deburring. The L.E. Wilson Trimmer Case Holder provides the ultimate accuracy and uniformity for trimming your cases. The unique design of the case holder supports the case body, much like a chamber of a firearm. The Case Holders are precisely manufactured for consistent results and repeatability. The FIRED Case Holders are for Neck Sized Cases. NEW Case Holders work with new, unfired brass or cases that have been full length sized. If a type isn’t specified the holder will fit both Fired, New, Neck or Full Length sized cases.

More...

Customer ratings for L.E. WILSON 284 SHEHANE NEW CASE HOLDER

Number of ratings: 20
From brownells.com: 20
Average rating: 3.8

Does Not Work With Hornady Dies (08/07/2017)

Recently bought this case holder to use after full-length resizing with Hornady New Dimension Custom Grade K-31-specific 7.5x55 Swiss dies. Case mouths would not exit the holder, making trimming impossible. However, I measured the shoulder on the resized brass and a fresh GP-11 cartridge. The GP 11 measured .448." The "resized" brass measured .472." I think the blame clearly lies with Hornady's dies, not the Wilson trimmer. Nevertheless, I am leaving this review because I want other shoppers to be aware that if they plan to use the Hornady dies, they will need to buy the trimmer holder for FIRED cases, Wilson item CH7555.

Frustrated (28/01/2018)

Bought the original one about a year ago, waiting for a rifle to get finished finally got my rifle she's a dream by the way. Now comes the not so good, I load 308, 223, 6.8, and various pistol calipers after my first shooting with new rifle cleaned and resized brass case goes all the way through, does not stop on shoulder as others, so I'm thinking I got a bad one it happens returned to brownells for a new one, same thing happening all over again, this time, it's not rocket scientist stick the case in the gage until it stops on shoulder set your cutter to desired length and trim not that hard. So I'm surprised that I got so lucky to get two too many out of spec maybe case gages

Maybe I do need to be a rocket scientist (08/02/2018)

So it's Charles again from previous post. Would like to remove the poor rating I gave product earlier. I have been using the wrong holder I needed new and full length resized holder for my brass, just goes to show that us part time rocket scientist aren't so smart after all. Product is great.

Works great! (20/04/2011)

Perfect trim jobs from my Wilson trimmer. Just be sure to tap the case into the holder good so it doesn't spin when you go to trim.

nothing special (27/03/2011)

soft material,dents easily when dropped to the concrete floor.

Drop Proof (31/12/2011)

Works great when you don't drop it on a concrete floor.

Works for both New & Fired Lapua Brass (01/03/2011)

If you're using Laupa 6mm BR Norma brass, you won't need to buy the Wilson Trimmer Holder for New Brass. It fits perfect in this one! Just the neck of new Lapua brass protrudes from the Wilson Trimmer Holder for New Brass. I bought both and only use this one.

GREAT Trimmer (01/05/2017)

FINALLY, a case holder that is accurate, easy to use. and very well made. This case holder, combined with the Stainless Ultimate Trimmer, is a perfect match. For those calibers for which Wilson makes a case holder, this combo will be my trimmer of choice.

Buy CH-308W, not this one (30/08/2012)

This holder will NOT work with fully re-sized brass.

Works with my full length and resized (01/11/2012)

Works as advertised. If it does not call L.E. they will get you straighted out. It is probably due to a tight chamber or oversized. Case Holders are set up to work with 98% of the chambers that are out there, but if it does not they will get you the correct holder for you.

Limited use with fully sized 308 cases (20/03/2018)

Let me say, first, that Wilson products and services are top notch, as is Brownells service. (Wilson trimmers are the most accurate I've ever used. I've trimmed hundreds of rifle cases in various calibers.) This particular case holder works for 243 fully sized (new) and fired brass. It does not work with once fired Lake City or Federal fully sized 308 brass. I used two different Redding presses and standard FL sizing Redding and RCBS dies to check this holder. The sized cases would not extend far enough to be trimmed. I do not have small base dies which reduce the case size to a greater degree to allow more efficient chambering in semi-automatic rifles. I did not use factory new, unfired brass. Based on what I've experienced, I would recommend BOTH case holders to prospective buyers. Rifle chambers vary from Target to Hunting to Military. This is not the fault of the manufacturer or the vendor.

<img width="500" src='/userdocs/reviewimages/95e4ba42-444d-435e-b271-18a4898660b8.jpg' alt=''>

<img width="500" src='/userdocs/reviewimages/255d5a93-233e-4000-b00d-83b4661cfb31.jpg' alt=''>

<img width="500" src='/userdocs/reviewimages/0f58848d-a1ae-4ca7-965e-7707a8625aba.jpg' alt=''>

<img width="500" src='/userdocs/reviewimages/f7743f42-de11-4d05-8b62-816bf8bb513b.jpg' alt=''>

Finest Quality (13/01/2013)

I use these trimmer holders in my Sinclair Micrometer Case Trimmer and get superb results. I trim my cases .010 to .015" under SAAMI maximum case length and get amazingly uniform results. The variation is + or - .0005". The jamb fit of the case holds the case in precise alignment. The only downside is the holder grabs the case so snug I have to to tap each trimmed case on a pad to remove it from the holder. Not a big minus when the results I get are so consistent.

Can be upgraded for Lapua Brass (18/02/2011)

You may be able to alter this Holder slightly to avoid having to also buy a New 204 Brass Holder. New Lapua Brass sits too deep inside this Holder, so that the Case Length Trimmer's threaded Adjustment Stop can't reach the case head. But by using a drill press, you can widen the back end of this Holder's hole so that the Adjustment Stop could enter the hole and reach the New Brass case heads. I didn't need to drill very deep, just about 0.1". I used a bit that was a little wider than the Adjustment Stop's face. I don't know if this will work for Norma brass, as I only use Lapua brass.

Not necessary for new Lapua 6mm BR Brass (18/02/2011)

While waiting for my new 6mm BR to arrive I started tooling up and bought both of the Wilson Trimmer Holders for new and fired brass. I'm using only Lapua Brass and I quickly found out that the new brass fits better in the standard Wilson Trimmer Holder.

Need To Revise My Original Rating (31/07/2011)

Unlike new Lapua brass, new Norma brass fits very well in this case holder because of its smaller diameter.

You may not need one of these. (18/02/2011)

You may not need to buy this New Brass Holder, if you buy the standard Holder (for fired brass) and alter it slightly. New Lapua Brass sits too deep inside the standard Holder, so that the Case Length Trimmer's threaded Adjustment Stop can't reach the case head. Using my drill press, I widened the back end of the Holder's hole so that the Adjustment Stop could enter the hole and reach the new brass case heads. I didn't need to drill very deep, just about 0.1". I used a bit that was a little wider than the Adjustment Stop's head. I don't know if this will work for Norma brass, as I only use Lapua brass.

You will need this holder for new brass (01/11/2012)

If you do not want to modify your holder and void your warrenty, you will need this holder.

L.E. will back up everything they make, they added this because your cases sit too deep in the fired holder which does not allow you to trim the case accurately.
Bottom Line you need for new brass or full lenght sized brass.

Quality (30/04/2018)

Typical Wilson quality product. Works great to produce exact length cases.

Won't Work for 30-30 with Neck Bumped up (29/03/2014)

If you bump the neck up on your 30-30 cartridges to prevent excessive stretching of the brass there isn't enough of the brass extending outside of the holder to trim

Details:
Using a Hornady Headspace gauge, I have found my fired brass to "Headspace" at 1.503"

I set my Redding die up to keep my shoulder at 1.501" to prevent excessive stretching of the brass when resizing

I have been trimming my brass to 2.030", but when I changed where my shoulder was, it seems I can no longer use the Wilson Trimmer Case Holder because the end of my brass is still inside the case holder.

Historically, using the generic Redding die settings my shoulder was at 1.485". This seemed to give me enough brass outside of the case holder to trim.

Wilson fixed my problem (28/04/2014)

I wrote a review on 3/29/14 with complaints about the holder not allowing you to trim if you bump up the neck of the case. I have since been able to contact Wilson and they were nice enough to machine the holder at no cost (outside of shipping it to them). The holder will now work with both cases (standard factory and with the neck bumped up to fit my rifle). I am very happy with the customer service I received and the holder now works great.

Read 20 more ratings on brownells.com

17.9 26.9 69 GBP

Product no.: 749011924
L.E. WILSON 284 SHEHANE NEW CASE HOLDER
Mfr Part: CH-284S The L.E. Wilson Rifle Case Holder holds the case for trimming, primer pocket reaming, neck reaming and deburring. The L.E. Wilson Trimmer Case Holder provides the ultimate accuracy and uniformity for trimming your cases. The unique design of the case holder supports the case body, much like a chamber of a firearm. The Case Holders are precisely manufactured for consistent results and repeatability. The FIRED Case Holders are for Neck Sized Cases. NEW Case Holders work with new, unfired brass or cases that have been full length sized. If a type isn’t specified the holder will fit both Fired, New, Neck or Full Length sized cases.
