BROWNELLS
RUGER® 77/M77® MARK II BEDDING PILLARS

050806102262 080000007

Description
Ratings (5)

Faster, Easier & More Precise Bedding

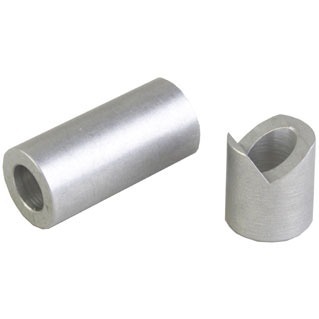

Pre-machined aluminum pillars solve the difficult problem of bedding Ruger bolt action centerfire rifles. The front pillar is cut to match the 60 degree angle of the receiver screw; pre-notched with the correct contour and angles to fit against the bottom of the recoil lug and set square with the floorplate hinge. Fits all Ruger® 77 and M77® Mark II™ rifles except VT target models.

SPECS: Aluminum, natural finish. Front - .600" (15.2mm) long, .535" (13.6mm) dia. Rear - 1.145" (2.9cm) long, .535" (13.6mm) dia.

More...

Customer ratings for BROWNELLS RUGER 77/M7 MARK II BEDDING PILLARS

Number of ratings: 5
From brownells.com: 5
Average rating: 3

Front pillar needs some work (29/03/2012)

The rear pillar was just fine. The front pillar when placed properly on the recoil lug was too far forward casuing the action screw to touch the rear inide of the pillar, and would not align properly within the stock. Solution: Center the front pillar which also aligns it properly in the stock, then fill in the gap between the pillar and the rear of the recoil lug with bedding materail. Both pillars were intentionally long and required 30-40 thousands of shortening.

Incorrectly manufactured (03/04/2012)

The notch in the front pillar is too far back leaving a gap between the rear of the recoil lug and the pillar.

Very satisfied! (28/02/2013)

I have read the other reviews and haven't had those problems, I think these work exceptionally well.

Not close (09/06/2014)

Front pillar was way short, by at least 1/4" and narrow. I used them on the M77 in the past so I don't know why they changed. Ended up making my own.

Worked very well for me (18/04/2017)

These pillars fit perfectly in my early 70's vintage M77 and improved accuracy dramatically, as noted by the four mulies killed, one shot each, from 100 to 320 yards last fall. Check fit for length and recoil lug angle match prior to installing and you should be fine. I'm buying three more sets for my other 77's.

Read 5 more ratings on brownells.com

0 0 1 GBP

Product no.: 080000007
BROWNELLS RUGER 77/M7 MARK II BEDDING PILLARS 050806102262 Ruger 77/M77 Mark II Bedding Pillars

Notify on availability

Not available.

Specs: Make: Ruger Model: 77, 77 Mark II

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Description

Ruger 77/M77 Mark II Bedding Pillars

Attributes

Make: Ruger Model: 77,77 Mark II Delivery weight: 0.018kg Shipping width: 83mm Shipping length: 146mm UPC : 050806102262

Item details

Made in USA

Enhance your Ruger 77/M77 Mark II with Brownells bedding pillars! 🛠️ Durable aluminum for improved accuracy and stability.

Description
Ratings (5)

Faster, Easier & More Precise Bedding

SPECS: Aluminum, natural finish. Front - .600" (15.2mm) long, .535" (13.6mm) dia. Rear - 1.145" (2.9cm) long, .535" (13.6mm) dia.

More...

Customer ratings for BROWNELLS RUGER 77/M7 MARK II BEDDING PILLARS

Number of ratings: 5
From brownells.com: 5
Average rating: 3

Front pillar needs some work (29/03/2012)

Incorrectly manufactured (03/04/2012)

The notch in the front pillar is too far back leaving a gap between the rear of the recoil lug and the pillar.

Very satisfied! (28/02/2013)

I have read the other reviews and haven't had those problems, I think these work exceptionally well.

Not close (09/06/2014)

Front pillar was way short, by at least 1/4" and narrow. I used them on the M77 in the past so I don't know why they changed. Ended up making my own.

Worked very well for me (18/04/2017)

Read 5 more ratings on brownells.com
