KLEINENDORST
SLING SWIVEL DRILL JIG

488000006

Description
Ratings (2)

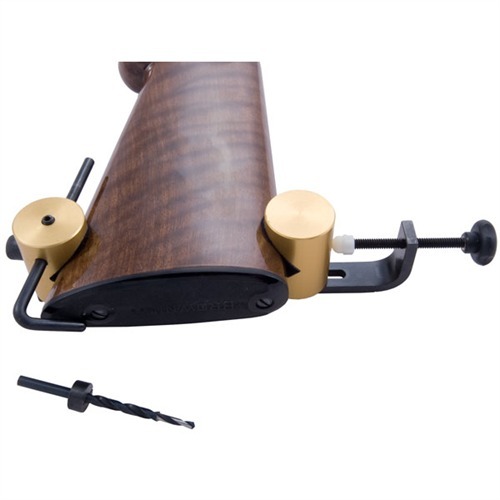

For Precise Alignment & Drilling Of Stock Swivel Stud Holes

Precision adjustable jig maintains the proper drill bit alignment to ensure the correct location of the rear swivel stud hole. Fits any size stock and automatically self-centers for perfect stud hole alignment. Felt lining prevents marring finished stocks. Includes 5/32" diameter carbon steel drill bit contains a special relief tip to help prevent wood splintering and break-out when drilling. Adjustable drill-depth indicator prevents drilling too deep and ruining the hole. For use with hand-held drill. Perfect for the high volume shop or beginner just starting out.

SPECS: Aluminum cylinders, anodized. Steel frame & adjustment bolt, black, matte finish. Includes fixture, 5⁄32" (3.9mm) dia. drill, and complete instructions.

More...

Customer ratings for KLEINENDORST SLING SWIVEL DRILL JIG

Number of ratings: 2
From brownells.com: 2
Average rating: 4.5

I recommend this Drill Jig (18/03/2010)

I recommend this product: 488-000-006 KLEINENDORST SLING SWIVEL JIG
To date I have successfully drilled three stocks with it with very good results. The tool is very robust (built well) and capable. I opted to use a fine file however to put a few measurement nicks on the stop rod; e.g. 3" mark to offset the fixed jig block for visible assuredness to stand off repeatable from the butt plate each time with certainty. I did this putting the stop rod against a square then measured for this mark-purely optional. The set screw works as intended. More difficult, my 3rd task required drilling a stock for a military style two screw swivel plate. It worked fine performing the math for the second hole. I am very pleased over all. Read the instructions and start patiently to get the hang of it. I believe you will like it as I do.

Best Sling Swivel Jig (26/05/2013)

Kleinendorst has the best tool for accurately drilling sling swivel stud holes in the butt of a rifle or shotgun stock! The other designs are a lot of foolishness for mediocre results. I assigned 4 out of 5 in the rating system because of one issue that needs to be addressed with this jig. A normal 3/4" threaded sling swivel stud (suitable for wood or synthetic stocks) has a mostly threaded shank with a small portion that is not threaded and slightly larger in diameter. Kleinendorst supplies a drill that will handle both diameters in one step and works wonderfully! However, after that is done and you screw the sling swivel stud in the stock (with or without one of those little black or white plastic spacers) you notice that your very accurately placed hole is not counter-bored. The part of the sling swivel stud that you see when it is screwed in to the stock does not fit flush when you view the stock from the side! There needs to be a specialized Forstner-type bit with an appropriate diameter pin in the middle (centering in the wonderfully accurate hole already there) for counter-boring a tiny bit of stock material and thereby allowing the sling swivel stud to seat flush in the stock. Thanks for a great product!

Read 2 more ratings on brownells.com

344.9 344.9 1 GBP

Product no.: 488000006
KLEINENDORST SLING SWIVEL DRILL JIG
Mfr Part: NONE Sling Swivel Drill Jig

344.9 GBP 5 £344.90 *

Delivery time approx. 7-14 days.
5 pcs. in the USA warehouse

Specs: Material: Steel Style: Installation Tool

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Description

Sling Swivel Drill Jig

Attributes

Material: Steel Style: Installation Tool Delivery weight: 0.612kg Shipping height: 58mm Shipping width: 84mm Shipping length: 272mm

Item details

Made in USA

Discover the SLING SWIVEL DRILL JIG from KLEINENDORST! 🛠️ Perfect for precise installations with durable steel and aluminum construction.

Description
Ratings (2)

For Precise Alignment & Drilling Of Stock Swivel Stud Holes

SPECS: Aluminum cylinders, anodized. Steel frame & adjustment bolt, black, matte finish. Includes fixture, 5⁄32" (3.9mm) dia. drill, and complete instructions.

More...

Customer ratings for KLEINENDORST SLING SWIVEL DRILL JIG

Number of ratings: 2
From brownells.com: 2
Average rating: 4.5

I recommend this Drill Jig (18/03/2010)

Best Sling Swivel Jig (26/05/2013)

Read 2 more ratings on brownells.com

Customers also bought

UNCLE MIKES

UNCLE MIKES 10-32 X 1/4" DOME STUD 12 PACK
UNCLE MIKE'S SLING SWIVEL STUD KIT

Sling Swivel Studs | Wood Screws

In stock

£18.90 £7.90 - £169.90

BROWNELLS

BROWNELLS SWIVEL STUD INSTALLATION TOOL
SWIVEL STUD INSTALLATION TOOL

Swivel Installation Tools

Not available

BROWNELLS

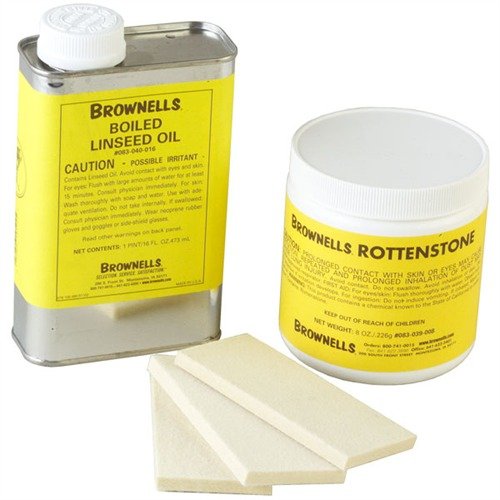

BROWNELLS STOCK RUBBING KIT
