YAVAPAI 1911 SEAR TOOL

050806104457 080835001

Description
Ratings (4)

Adjustable For Angle Of Cut; Lets You Examine Actual Hammer & Sear Engagement At 20X!

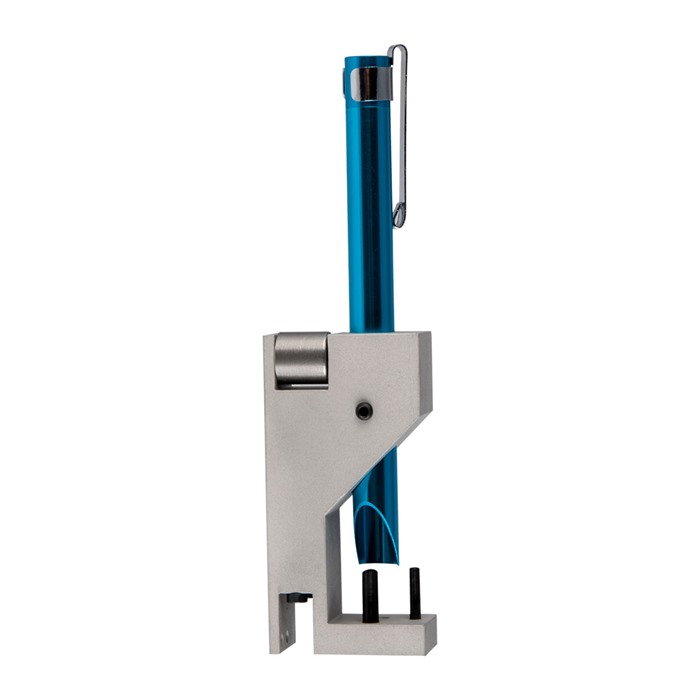

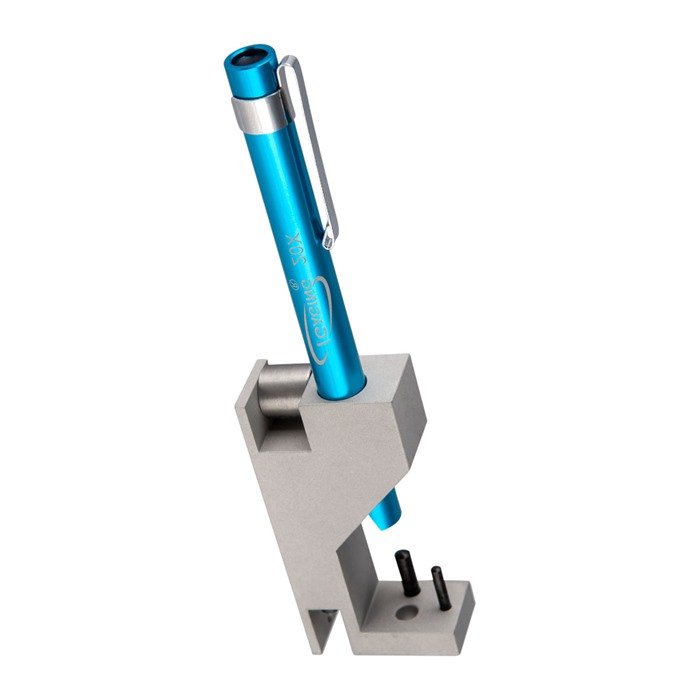

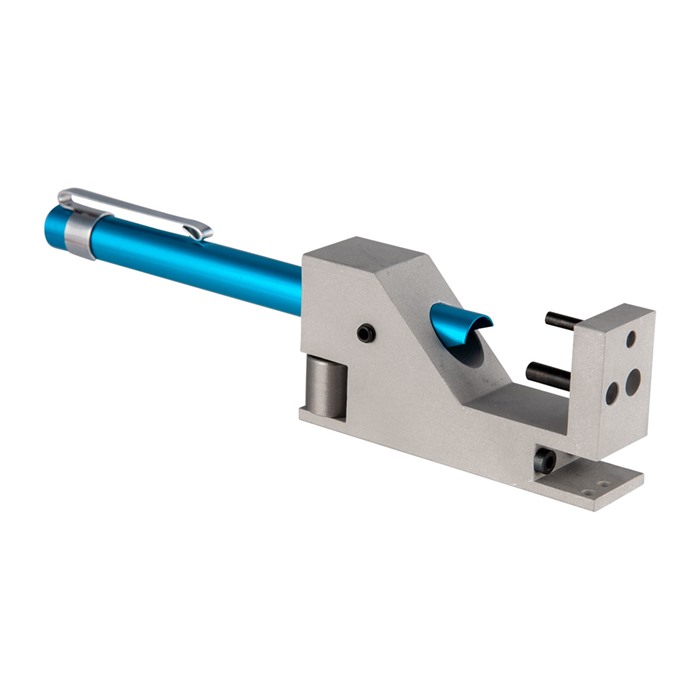

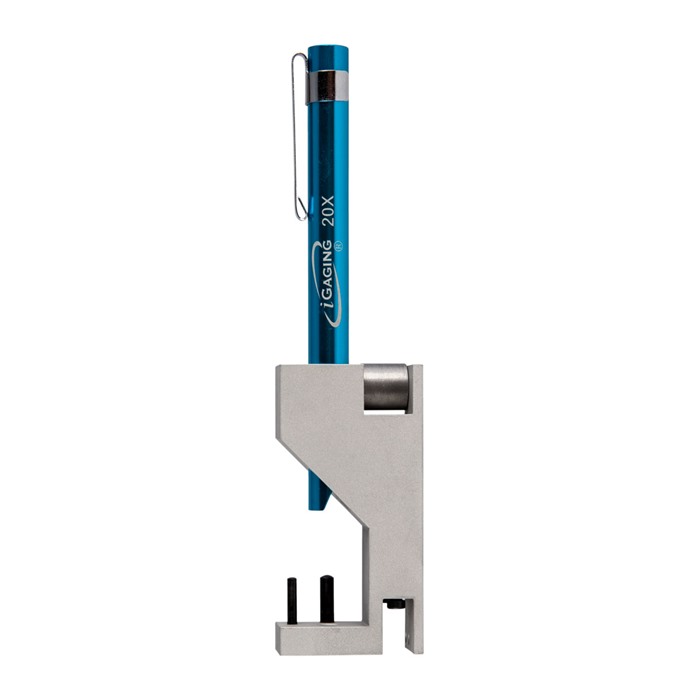

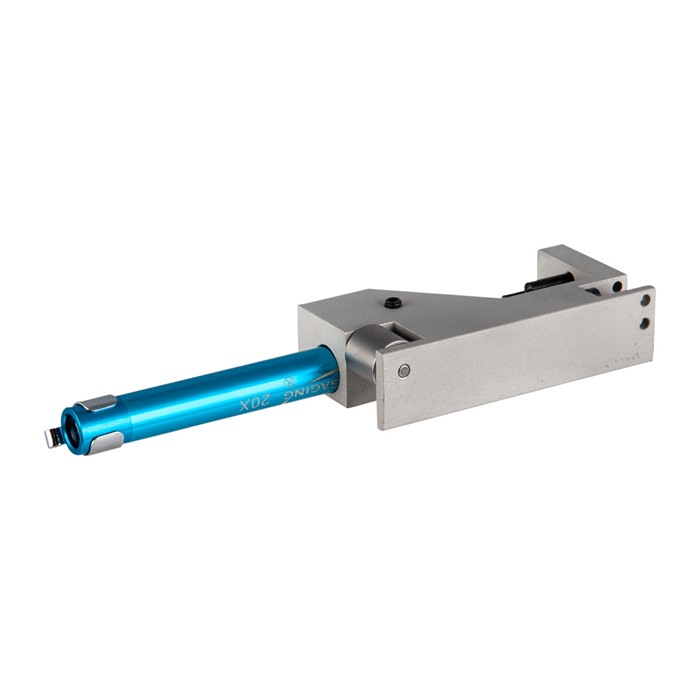

Developed by the gunsmithing program at Yavapai College to help their students learn the correct angle of hammer/sear engagement required for achieving a light, clean-breaking, match-quality trigger on the 1911 Auto. Precision-machined tool incorporates a roller-type, sear stoning fixture that allows incremental cutting of both primary and secondary sear angles plus, a 20 power magnifier for detailed, up-close examination and precise changes in individual hammer/sear engagement.

SPECS: Aluminum block, 3" (7.6cm) x 1.5" (3.8cm) x ¾" (19cm). Includes 20X magnifier, steel roller, hammer pin, sear pin and complete instructions.

More...

Customer ratings for BROWNELLS/YAVAPAI 1911 SEAR TOOL

Number of ratings: 4
From brownells.com: 4
Average rating: 5

TIME SAVER (10/03/2013)

This is the best product I have ever used for a 1911 trigger job. It is to get it perfect fast. I have other things to do with my time other than continually assembling and disassembling again and again. If your eyes aren't what they used to be then this is the ticket. Make you a mount to set this on to compensate for your neck angle when you lean over greatly reduces fatigue. Great product designed by a great school!

Indispensable tool for 1911 sear work (29/09/2014)

I work with my hands on humans for a living, and possess surgical loupes for use in the operating room. The ability to see is a must before you can make meaningful changes, whether that is to the human body or to your sear/hammer interface. The 20x built-in loupe makes it really easy to see if the sear-hammer interface is mating properly, especially if you apply magic marker to the sear and work the hammer to see where it's rubbing unevenly. There are very small division marks in the lens which allow you to accurately measure the proper hammer hook height (0.018 or 0.020 - your choice) instead of relying just on a piece of shim. You can also fine-tune the primary and secondary angles on your sear using this Yavapai Sear Tool with the proper stone. It allows you to make that perfect sear-hammer interface in the shortest amount of time possible. I think this device trumps the Power Customs Series 1 Stoning Fixture. I can use this Yavapai tool to get perfect angles, as well as being able to SEE that the angles have been tuned perfectly.

Work in a well-lit environment so you can see clearly using this device. Put it against a white background to reflect light through the small hole in the end for even more revealing images. Rotate the lens so you allow maximum light through via the cut-out at the bottom end of the lens tube.

You will not regret getting this device for your sear work.

(No financial interest in this company or device. No conflict of interest disclosure.)

Great tool for trigger work! (03/12/2015)

This tool provides the individual the ability to check the sear and hammer engagement for the 1911. By providing the needed magnification to ensure that the sear angle is correct, the person can ensure that the trigger job is done right and the results can be repeatable.

High Quality Sear Tool with magnifier (09/12/2015)

There are plenty of 1911 Sear jigs available; this one has a 20x magnification lens with a 0-0.18 inch scale with and 0.002 inch increments. This allows direct measurement of hammer hooks and direct observation of Sear Hammer interface even if your eyes are aging like mine. The jig itself is similar to others, the magnification and scale set this tool apart from others. This tool has made Hammer Sear adjustments much easier to accomplish accurately.

Read 4 more ratings on brownells.com

184.9 184.9 1 GBP

Product no.: 080835001
BROWNELLS/YAVAPAI 1911 SEAR TOOL 050806104457 Brownells/Yavapai Sear Tool

184.9 GBP 0 £184.90 *

Backordered, delivery time approx. 4-12 weeks from the USA warehouse.

Specs: Make: 1911 Model: Government, Commander, Officers

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Description

Brownells/Yavapai Sear Tool

Attributes

Make: 1911 Model: Commander,Government,Officers Delivery weight: 0.113kg Shipping height: 61mm Shipping width: 64mm Shipping length: 173mm UPC : 050806104457
