B&R RECOIL PAD FITTING JIG

050806110250 080000868

Description
Ratings (4)

Lets You Do Fast, Professional, No-Mar Pad Installation

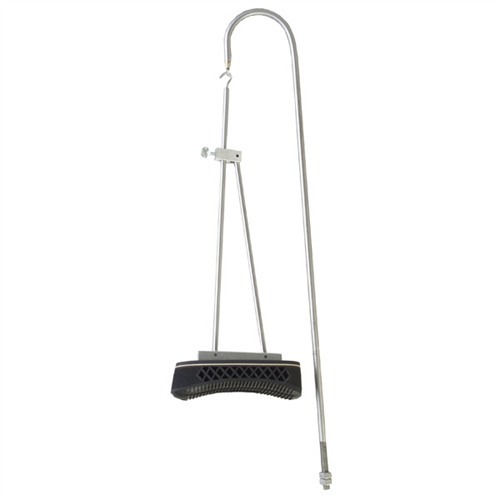

One of the most difficult aspects of fitting a recoil pad has always been the final fitting of pad to wood because it is so easy to hit the stock with the disc, sanding strip, or file - and ruin the finish. The B&R Recoil Pad Fitting Jig removes the risk of stock damage by letting you finish the pad completely off - and away from - the stock. The Jig is composed of two basic pieces: (1) an adjustable triangle on which the pad is mounted to be dressed to size, and (2) a universal support that attaches to the sanding disc table. Operation is simple. First, cut the stock to the length and pitch required to fit the customer. Attach the pad to the stock, and sharply scribe the outline of the stock on the pad. Then transfer the pad to the base plate of the Jig, set the angle of pitch, put the Jig on its support, and dress the pad to the point of just removing the scribed line (this is necessary as the line was drawn outside the stock). Finally, test fit the pad to the stock and do any final dressing by hand, if needed. The lines of the stock are carried correctly into the pad - and you have a perfect fit! The Jig eliminates all damage to the stock finish and reduces the entire pad mounting operation to a simple 15 minute exercise - making the job an easy and highly profitable one.

SPECS: Steel support is 20-1⁄4" (51.4cm) long. Steel triangle legs are approximately 11-1⁄4" (29.2cm) long. Aluminum base plate is 3-1⁄2" (9cm) long. Includes instructions.

More...

Customer ratings for BROWNELLS B&R RECOIL PAD FITTING JIG

Number of ratings: 4
From brownells.com: 4
Average rating: 3.3

Will you re add this product?? (15/01/2012)

Do you forsee adding this out of stock item to your catalog again? I had one some time ago and found it to be an excellent tool which saved a great deal of time. I was hoping to add it to my tool collection again as I restart my business. I am a disabled veteran however do find this product was easy to use for the purpose.

What a time saver! (14/02/2012)

Once I drilled out the hole in the swivel so the hanger hook fit through I had it made. This product does what it claims, SAVES TIME. I've fit 4 pads with it so far and it really is a "Why didn't I think of this."

Mine needed modifications before use (18/02/2012)

Looked like a good idea. The piece that the pad screws on to must be modified before use. The center to center hole spacing is 3.050". A medium size pad is spaced 3.12" and a large size pad is 3.22". Either modify the part supplied or modify every pad you fit. The maker of the tool supplies the information to contact them for a blank piece so you may drill & tap to fit your needs. I had mine for quite awhile before I used it. If I had known it would require modification before I could put it to work, I doubt that I would have purchased it.

Not universal (03/10/2013)

The makers of this product say that it is universal, but it is not. Most recoil pads for shotguns and rifles do not line up with the wholes and had i known before i would have used a friends mill and made my own.

Read 4 more ratings on brownells.com

129.9 129.9 1 GBP

Product no.: 080000868
BROWNELLS B&R RECOIL PAD FITTING JIG 050806110250 One of the most difficult aspects of fitting a recoil pad has always been the final fitting of pad to wood because it is so easy to hit the stock with the disc, sanding strip, or file - and ruin the finish. The B&R Recoil Pad Fitting Jig removes the risk of stock damage by letting you finish the pad completely off - and away from - the stock. The Jig is composed of two basic pieces: (1) an adjustable triangle on which the pad is mounted to be dressed to size, and (2) a universal support that attaches to the sanding disc table. Operation is simple. First, cut the stock to the length and pitch required to fit the customer. Attach the pad to the stock, and sharply scribe the outline of the stock on the pad. Then transfer the pad to the base plate of the Jig, set the angle of pitch, put the Jig on its support, and dress the pad to the point of just removing the scribed line (this is necessary as the line was drawn outside the stock). Finally, test fit the pad to the stock and do any final dressing by hand, if needed. The lines of the stock are carried correctly into the pad - and you have a perfect fit! The Jig eliminates all damage to the stock finish and reduces the entire pad mounting operation to a simple 15 minute exercise - making the job an easy and highly profitable one.

129.9 GBP 0 £129.90 *

Backordered, delivery time approx. 4-12 weeks from the USA warehouse.

Specs: Make: Universal Rifles, Universal Shotguns

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The B&R Recoil Pad Fitting Jig prevents stock damage while fitting a recoil pad by allowing the pad to be finished off the stock.
It consists of an adjustable triangle for mounting the pad and a universal support for the sanding disc table, simplifying the fitting process.
With the Jig, the entire pad mounting operation is reduced to a quick and profitable 15-minute task, ensuring a perfect fit between the stock and pad.

Attributes

Make: Universal Rifles,Universal Shotguns Delivery weight: 0.454kg Shipping height: 36mm Shipping width: 102mm Shipping length: 533mm UPC : 050806110250

Item details

Made in USA
