BROWNELLS
ROLL PIN PUNCH SET

050806006553 080000650

Description
Ratings (10)

Remove & Install Roll Pins The Professional Way

We combined 19 of our most popular roll pin punches and added a handy bench block to come up with the perfect punch set for the busy shop or department armor. Easily start, remove, and install spring pins and roll pins in firearms without damage to the pin or firearm. Features (5) holder punches, (7) starter punches, and (7) standard punches that can easily handle any job out there. Made from solid steel, with parallel-ground shanks and knurled handles. Also includes a non-marring, nylon drift punch that won’t damage or scrape delicate surface finishes. Machined, Delrin® bench block holds and organizes all the punches for easy access. Holder punches cup and hold roll pins, keeping them aligned for easy starting without pinching or binding. Especially good on the tiny, hard-to-grab ones, or those in tight places. Features a 1/16" diameter punch that is notched to clear the M16/AR-15 rear sight, plus a 3.5mm diameter punch for holding the pin that retains the breech block on Sig handguns. Finish driving with a standard roll pin punch. Starter punches are used to start the removal of roll or spring pins without causing damage to the pins or the punch. Short shaft gives more control by putting your hand closer to the pin and prevents bending the longer, standard roll pin punches. Standard punches are used to finish drive the roll pin or spring pin after it’s started. Starter and standard roll pin punches feature a special tip that centers inside the hollow pin to help prevent slippage. Complete set includes bench block, also available separately.

SPECS: Punches - Steel, knurled handle, matte black. Nylon Punch - 4” (10cm) long x 5⁄16" (7.9mm) diameter. Holder Punches - Contains (1) of each diameter: 1⁄16" (1.6mm), 5⁄64" (2mm), 3⁄32" (2.4mm), 1⁄8" (3.2mm), 9⁄64" (3.5mm). Working length: 2½” (6.3cm) - 3” (7.6cm) long. Starter Punches - Contains (1) of each diameter: #1, 1⁄16"; #2, 4⁄64"; #3, 3⁄32"; #4, 1⁄8" (3.2mm); #5, 5⁄32" (4mm); #6, 3⁄16" (4.8mm); #7, 7⁄32" (5.5mm). Working length: ½” (3.2cm) long. Standard Punches - Contains (1) of each diameter: #1, 1⁄16"; #2, 5⁄64"; #3, 3⁄32"; #4, 1⁄8"; #5, 5⁄32"; #6, 3⁄16"; #7, 7⁄32". Working length: 15⁄16" (2.4cm) - 2½” (6.4cm) long. Bench Block - Delrin, tan. 6-3⁄8" (16cm) long, 3” (7.6cm) wide, ¾” (1.9cm) high. Holds all 20 punches. Bench block included in set, also available separately.

More...

Customer ratings for BROWNELLS ROLL PIN PUNCH BENCH BLOCK ONLY

Number of ratings: 10
From brownells.com: 10
Average rating: 2.7

The Essential Roll Pin Set for Gunsmiths (03/12/2009)

I have owned the Brownells Roll Pin Punches for about 4 years. When this set became available I bought it right away. When used properly theese punches provide exelent longevity and avoid damage to your firearm. I use theese punches on a daily basis for assembly of AR-15's and AR-10's and wouldn't be without them.

Great Set to Start With (03/02/2011)

Great set of high quality punches to start out with. Better than most punches you will find out there.

double trouble (02/04/2011)

Buy two sets because they are junk and will break over and over again

Thrown Together (02/12/2011)

Bought set to have more versatility over my existing Starrett punch set. There are 20 items to set. None of the punches have the small center stub that should be there for roll pins. These are just plain punches, not roll pin punches. Besides that, I got 2 #13 punches and no #16 punch. Only 4 out of the 20 punches actually fit into the holes in the plastic block holder. Had to redrill everything just to get them to fit properly.

nice set (03/11/2012)

nice set block is nice touch as well

Junk Pin Punches (29/11/2012)

1 punch came thru bent to the point of not being able to use it. The holes in the block don't match the diameter of the punches. Quality of roll pins sub-par,
. All and all don't waste your time.

The product needs more QC (10/08/2013)

I rated this a one because 2 of the punches were not the correct size. They sent me two of the same punch and one punch that was way too small to fit in the holder hole. I have a tough time giving a good review when the correct punches are not in the set.

Never again!! (25/05/2014)

These punches are the worst ever, I don't know what steel they used but They either bend or completely break. Don't waste your money!!!

Light Use Maybe (04/11/2016)

I have used several types of punches to work on firearms. These punches, simply put did not stand up to regular use on rifles. Initially, they were fine, however in the period of about a year they began chipping and bending. If you are a light user of these types of punches they may last for quite some time, however I would not recommend them for professional use. They appear to have a nice finish and weight, I found the punch holder useful. To sum it up; you get what you pay for, especially in hardened type tools.

Works (30/03/2017)

I needed to drill out the holes to accommodate all my punches, other than that it works.

Read 10 more ratings on brownells.com

25.9 179.9 2 GBP

Product no.: 080000650

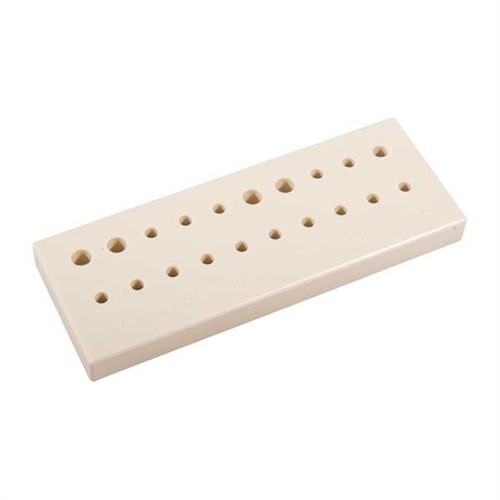

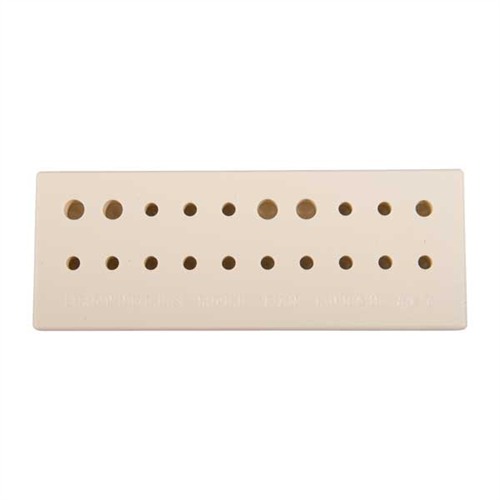

BROWNELLS ROLL PIN PUNCH BENCH BLOCK ONLY 050806006553 Bench Block, only

25.9 GBP 2 £25.90 *

Delivery time approx. 7-14 days.
2 pcs. in the USA warehouse

Specs:

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Description

Bench Block, only

Attributes

Delivery weight: 0.249kg Shipping height: 20mm Shipping width: 84mm Shipping length: 191mm UPC : 050806006553

Item details

Made in USA

Product no.: 080000651
BROWNELLS ROLL PIN PUNCH BENCH SET 050806109407 We combined 19 of our most popular roll pin punches and added a handy bench block to come up with the perfect punch set for the busy shop or department armor. Easily start, remove, and install spring pins and roll pins in firearms without damage to the pin or firearm. Features (5) holder punches, (7) starter punches, and (7) standard punches that can easily handle any job out there. Made from solid steel, with parallel-ground shanks and knurled handles. Also includes a non-marring, nylon drift punch that won’t damage or scrape delicate surface finishes. Machined, Delrin® bench block holds and organizes all the punches for easy access. Holder punches cup and hold roll pins, keeping them aligned for easy starting without pinching or binding. Especially good on the tiny, hard-to-grab ones, or those in tight places. Features a 1/16" diameter punch that is notched to clear the M16/AR-15 rear sight, plus a 3.5mm diameter punch for holding the pin that retains the breech block on Sig handguns. Finish driving with a standard roll pin punch. Starter punches are used to start the removal of roll or spring pins without causing damage to the pins or the punch. Short shaft gives more control by putting your hand closer to the pin and prevents bending the longer, standard roll pin punches. Standard punches are used to finish drive the roll pin or spring pin after it’s started. Starter and standard roll pin punches feature a special tip that centers inside the hollow pin to help prevent slippage. Complete set includes bench block, also available separately.

179.9 GBP 0 £179.90 *

Backordered, delivery time approx. 4-12 weeks from the USA warehouse.

Specs: Material: Steel Style: Set, Roll Pin Quantity: 20
