CYLINDER & SLIDE
BROWNING HI-POWER HAMMER, SEAR & SPRING SET

000000002851 206000017

Description
Ratings (4)

Premium Components For A Smooth, Crisp, Trigger Pull

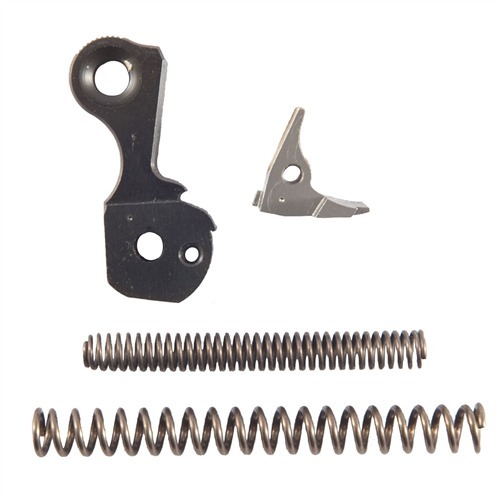

Four-piece, target set allows precise fitting for sear engagement to greatly improve trigger feel and function. All sets include a long lasting, heat-treated, CNC-machined sear; 21 lb., reduced-power, hammer spring; factory-weight, firing pin spring and premium, commander-style hammer for no-bite, shooting comfort. CS281 features a standard, round spur hammer with narrow, chamfered edges to eliminate slide drag. CS285 have new, No-Bite, chamfered, ring hammer with deep, contoured back for less weight and reduced lock time. Hardened, tool steel sear replaces the factory, cast part; polishes easily and holds its angles for thousands of rounds. Gunsmith fitting recommended.

SPECS: Hammer - 4140 chrome moly, carbon steel; blue finish. Rc 50-53. Sear - Tool steel, in-the-white. Rc 50-53. Hammer Spring - 21 lb. (9.5 kg) reduced power, factory is 32 lb. (14.5 kg). Firing Pin Spring - Standard weight. Fits Browning Hi-Power 9mm and .40 S&W.

More...

Customer ratings for CYLINDER & SLIDE MODEL CS285, NO-BITE, BLUE

Number of ratings: 4
From brownells.com: 4
Average rating: 3.8

Wonderful product~ but ! (21/12/2011)

When this product says gunsmith installation "recommended", you should read gunsmith "required". If you are a novice, be forewarned that this set, or any others require some finite tuning. The sear on my set was not even close to fitting the hammer shelf well~ if this had been installed 'as is'~ this would have been a full auto Browning ! Major stoning was required to mate the hammer to the sear, and even after that was done, some refining was required to the safety geometry to get the safety to engage in both 'half-cocked' and 'full-cocked'. In the end~ it created a no slack/no creep and very crisp trigger pull with a significantly reduced locktime. Well done C&S !!!!

Well worth the money (21/08/2014)

My comment would be basically the same as Jim B's. These parts require the services of a knowledgeable gunsmith to install them, but it's well worth the cost. My gunsmith tried to do a trigger job with the original hammer and sear, but they wouldn't hold an edge. He replaced them with these parts, and not only is hammer bite largely a thing of the past, I've got the cleanest Hi Power trigger I've ever experienced, breaking right at 4.0 lbs like I asked.

21 lbs is too low (26/08/2017)

The hammer and sear themselves are great. Look good and are clear improvements in quality and function.

However, the mainspring/hammer spring that are supplied with these kits is way too low. Every gunsmith and hi-fan I have talked to has told me that the 21 lbs main spring is so low that it can cause problems with frame battering.

Also, even C&S told me that under no circumstances use +P ammo and to avoid even foreign produced ammo because it's a little more hot than SAAMI specs. Moreover, they told me that you MUST use a heavier 18.5 lbs recoil spring to keep slide velocities in spec.

I have shot my gun with these parts using the heavier recoil spring and it functions well. However, I am so gravely concerned with the long term effects on the frame that I going to increase the weight of the hammer spring.

C&S makes this kit, but with a heavier mainspring. Buy that one and avoid my mistake.

Well made, fits well (21/06/2013)

Hammer and sear dropped in to my HP practical, the only work required was to refit the safety to the new parts. If you've fit a safety on a 1911, it's no big deal, if you haven't take it to your local pistolsmith to install. Trigger pull is much improved, but this was helped by removing the mag disconnect at the same time. There's room to make it better by stoning the sear for less engagement as they have left lots, probably to ensure safe fitting across the board. The main thing is, my HP no longer draws blood when i shoot it.

Read 4 more ratings on brownells.com

169.9 169.9 2 GBP

Product no.: 206000017
CYLINDER & SLIDE MODEL CS285, NO-BITE, BLUE
Mfr Part: CS0285 000000002851 Four-piece, target set allows precise fitting for sear engagement to greatly improve trigger feel and function. All sets include a long lasting, heat-treated, CNC-machined sear; 21 lb., reduced-power, hammer spring; factory-weight, firing pin spring and premium, commander-style hammer for no-bite, shooting comfort. CS281 features a standard, round spur hammer with narrow, chamfered edges to eliminate slide drag. CS285 have new, No-Bite, chamfered, ring hammer with deep, contoured back for less weight and reduced lock time. Hardened, tool steel sear replaces the factory, cast part; polishes easily and holds its angles for thousands of rounds. Gunsmith fitting recommended.

169.9 GBP 0 £169.90 *

Backordered, delivery time approx. 4-12 weeks from the USA warehouse.

Specs: Make: Browning Model: High Power

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The set includes a CNC-machined sear, a 21 lb. reduced-power hammer spring, a standard-weight firing pin spring, and a commander-style hammer for improved trigger feel and function.
CS285 features a No-Bite, chamfered ring hammer designed for shooting comfort and reduced lock time.
Designed for the Browning High Power, the set requires gunsmith fitting and is made of high-quality materials like 4140 chrome moly carbon steel and tool steel with hardness Rc 50-53.

Attributes

Make: Browning Model: High Power Delivery weight: 0.045kg Shipping height: 18mm Shipping width: 109mm Shipping length: 178mm UPC : 000000002851

Item details

Made in USA
US export classification: 0A501.c
