Home Gunsmith Tools Measuring Tools Dovetail Slot Measuring Gauges XS SIGHT SYSTEMS DOVETAIL MEASURING GAUGE Support
647533008181 006101000
Determines Dovetail Width On Virtually Any Sight Or Firearm

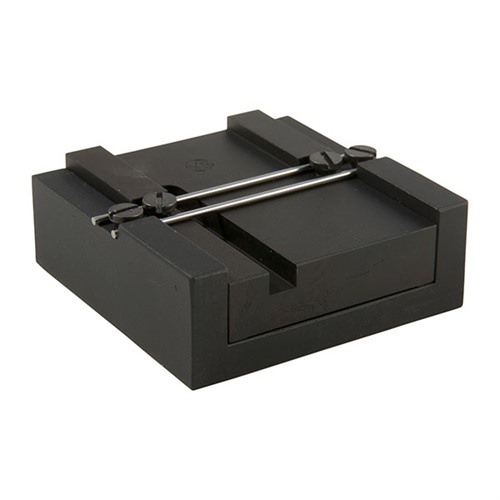

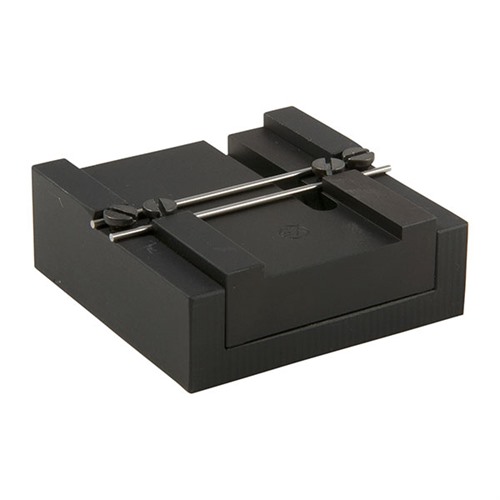

Accurately measures the theoretical point to point of a dovetail for professional-looking, "gap-free" sight installation. Lets you make dovetail cuts within .0005". Speeds sight installation time with less chance of error and less hand filing. Takes the guesswork out of determining how wide to mill the cut. An abosolute neccessity when ordering sights to fit an existing dovetail. Includes fixture for measuring sights and two steel gauge pins for measuring existing sight dovetails.

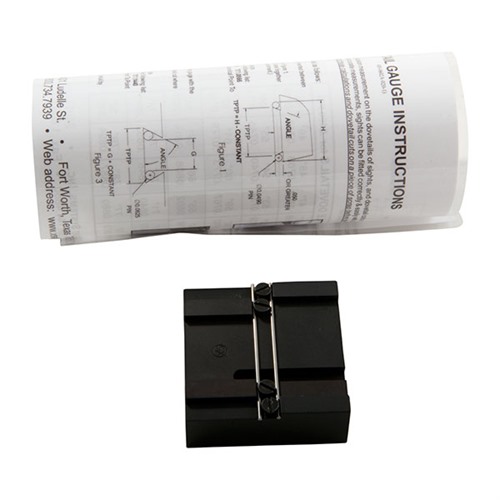

SPECS: Aluminum base, matte black finish. Steel pins. Base 2" (5.8cm) x 2" (5.8cm) x 1.1" (2.8cm). Includes charts, instructions.
More...
0 0 1 GBP
Product no.: 006101000
XS SIGHT SYSTEMS DOVETAIL MEASURING GAUGE
Mfr Part: DVTL-MG 647533008181 Accurately measures the theoretical point to point of a dovetail for professional-looking, "gap-free" sight installation. Lets you make dovetail cuts within .0005". Speeds sight installation time with less chance of error and less hand filing. Takes the guesswork out of determining how wide to mill the cut. An abosolute neccessity when ordering sights to fit an existing dovetail. Includes fixture for measuring sights and two steel gauge pins for measuring existing sight dovetails.
Notify on availability
Not available.
Ask question

Top takeaways

  1. Provides precise measurements for dovetail cuts to within .0005" for professional sight installations with no gaps.
  2. Includes a fixture for measuring sights and two steel gauge pins for assessing existing dovetails, thus reducing installation errors and filing work.
  3. Essential tool for ordering sights that fit an existing dovetail, made with an aluminum base and matte black finish, accompanied by charts and instructions.

Attributes

Delivery weight: 0.363kg Shipping height: 43mm Shipping width: 150mm Shipping length: 267mm UPC : 647533008181

Item details

Made in USA



Achieve perfect dovetail sight installation with the XS Dovetail Measuring Gauge. 🛠️ Accurate, fast, and essential for professionals!

Determines Dovetail Width On Virtually Any Sight Or Firearm
Accurately measures the theoretical point to point of a dovetail for professional-looking, "gap-free" sight installation. Lets you make dovetail cuts within .0005". Speeds sight installation time with less chance of error and less hand filing. Takes the guesswork out of determining how wide to mill the cut. An abosolute neccessity when ordering sights to fit an existing dovetail. Includes fixture for measuring sights and two steel gauge pins for measuring existing sight dovetails.
SPECS: Aluminum base, matte black finish. Steel pins. Base 2" (5.8cm) x 2" (5.8cm) x 1.1" (2.8cm). Includes charts, instructions.
