J P ENTERPRISES
AR-15/M16 FLATTOP OPTIC MOUNT

812872022192 452000044

Description
Ratings (2)

Integral Offset Rings For Rock-Solid Mounting

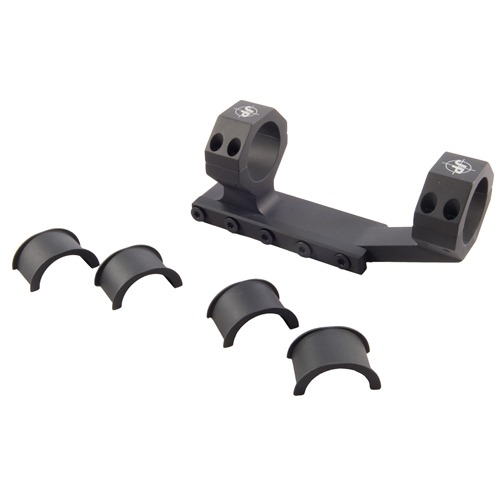

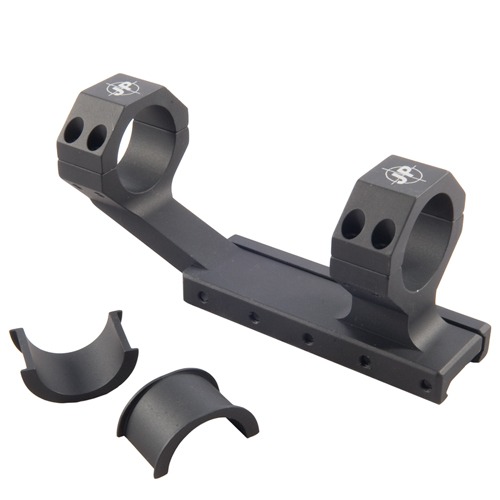

One-piece, aluminum mount with integral rings is precision machined to true MIL-STD 1913 Picatinny specs for a secure fit on flattop receiver rails. Ring height and forward offset are ideal for use with long eye relief scopes. Mounts available for 1"/30mm and 34mm scope tubes. 1"/30mm mount accepts scopes with both 30mm tubes and, using the included polymer adapter shims, 1" tubes. Torx® head screws (4 on 1"/30mm, 6 on 34mm and 35mm) secure each top ring strap to hold the optics tight under heavy recoil. Full-length base clamps to the receiver with five, equally spaced crossbolts for a rock-solid fit and zero movement.

SPECS: 6061 T6 aluminum, hardcoat anodized, matte black. Includes instructions and T15 and T20 Torx wrenches. 1"/30mm - Approximately 5½" (14cm) long, 1¾" (4.4cm) wide, 21⁄8" (5.4cm) high. 7.1 oz. (201 g) weight. Elevates a 30mm optic .965" (24.5mm), measured from top of receiver rail to bottom of scope. 34mm - 5¾" (14.6cm) long, 115⁄16" (4.9cm) wide, 2½" (6.3cm) overall height. 7 oz. (198g) weight. Height - .760" (1.9cm), measured from top of receiver rail to bottom of scope tube.

More...

Customer ratings for J P ENTERPRISES JP FLATTOP SCOPE MOUNT, 1"/30MM

Number of ratings: 2
From brownells.com: 2
Average rating: 5

JP built to use (19/04/2016)

I used this mount to attach a heavy 34MM scope to a Ruger precision rifle. Objective lens is 50MM and there is sufficient room for any lens cover and you still don't have to run the cheek piece very high at all. This mount is very solid and very lightweight as well. Recoil lug is very solid. Rings hold the optic securely at 15 in-lb with six screws per cap. I really like the fact that there are no big bolts or nuts to obscure vision. I did have burrs in each threaded portion of the base, run the screws in and out once from the "wrong" side before you mount the base to your top rail to clear those out. I don't plan on removing this often but the return to zero should be right on just looking at the design.

Excellent non-QD scope (25/08/2011)

Best AR-15 mount available if you don't need QD. Light but completely solid. Rings lined up perfectly out of the box. I shoot with my cheek on the front edge of a Magpul PRS cheek piece and had room to spare to mount a Leupold 3.5-10x40 Mark 4 on the receiver. Even if you had to hang over the receiver I think 4 bolts would be more than enough to hold this mount. Elevation is the same as a 30mm Larue Tactical LT-104, .09" higher than a 1" LT-104 because of the shims. I needed to raise the cheek piece some for a good site picture but that is better than being too low.

Read 2 more ratings on brownells.com

0 0 1 GBP

Product no.: 452000044
J P ENTERPRISES JP FLATTOP SCOPE MOUNT, 1"/30MM
Mfr Part: JPFTSM301 812872022192 One-piece, aluminum mount with integral rings is precision machined to true MIL-STD 1913 Picatinny specs for a secure fit on flattop receiver rails. Ring height and forward offset are ideal for use with long eye relief scopes. Mounts available for 1"/30mm and 34mm scope tubes. 1"/30mm mount accepts scopes with both 30mm tubes and, using the included polymer adapter shims, 1" tubes. Torx® head screws (4 on 1"/30mm, 6 on 34mm and 35mm) secure each top ring strap to hold the optics tight under heavy recoil. Full-length base clamps to the receiver with five, equally spaced crossbolts for a rock-solid fit and zero movement.

Notify on availability

Not available.

Specs: Finish: Black Height: 1.45'' Make: AR-15 Scope Tube Diameter: 1'', 30mm Style: Picatinny, Flat Top

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The mount is a one-piece, aluminum construction precision machined to MIL-STD 1913 Picatinny specs, ensuring a secure fit on flattop AR-15 receiver rails.
It accommodates both 1"/30mm and 34mm scope tubes, with polymer adapter shims included for 1" scope tubes, and features Torx head screws to maintain optic stability under recoil.
Constructed from 6061 T6 aluminum with a hardcoat anodized finish, the mount includes all necessary tools for installation and elevates a 30mm optic by .965" from the receiver rail.

Attributes

Finish: Black Height: 1.45'' Make: AR-15 Scope Tube Diameter: 1'',30mm Style: Flat Top,Picatinny Delivery weight: 0.249kg Shipping height: 56mm Shipping width: 118mm Shipping length: 186mm UPC : 812872022192
