W. FREAR INNOVATIONS
COLLIMATOR ELEVATOR

100002512

Description
Ratings (4)

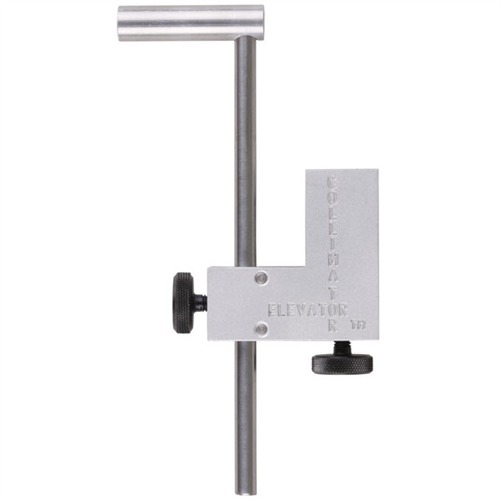

Adapts Your Collimator For Use With Large Objective Optics

Precision-manufactured device greatly extends the use and range of your optical collimator for rifles equipped with large objective scopes or scopes mounted in rings high above the centerline of the bore. Very easy to use: Mount your collimator onto the elevation arm, insert your bore spud in the elevator block, then lock with thumbscrew. Insert your spud into the bore and move elevation shaft up or down. Adjust the collimator so its grid view is near the center of the objective lens, and lock collimator height with second thumbscrew.

NOTE: Can be used with any bore spud or arbor 1/2" or smaller to include expandable arbors.

SPECS: Elevator Block - Aluminum. 1¾" (4.5cm) long, ¾"(1.9cm) wide, 1¾" high. Elevation Shaft - Stainless steel. ¼" (6.3mm) diameter. Elevation Arm - Aluminum. 3⁄8" (9.5mm) diameter. Includes instructions. Can be used with any bore spud or arbor 1/2" OD or smaller to include expandable arbors.

More...

Customer ratings for W. FREAR INNOVATIONS COLLIMATOR ELEVATOR

Number of ratings: 4
From brownells.com: 4
Average rating: 4.8

Great Product (02/07/2013)

When I ordered this item I thought it was way over priced. But I was fed up with trying to bore sight my "modern sporting rifles" with their high scope placement over their bores.

My FNH SCAR 17S has it's scope 3.5" above the bore and this collimator elevator worked perfectly.

It's well made and worth every penny!

Highly recommended!

Large scope bore-sighting miracle (25/09/2015)

Well finally! Tried to formulate this type of tool at NRA summer school in Trinidad; but ran out of time. Struggled with large scopes here in the west with a Bushnell Bore sighter that couldn't accommodate the spud. Bought a laser tool that worked just o.k. given range/distance limitations of my shop til now. Looking through the catalog for alternatives for bore sighting noticed this tool and immediately ordered it and put it to use as soon as received. Worked perfectly and now I can readily bore sight the largest scopes that have been showing up in my shop even with the tallest rings and bases. Five stars fantastic design, materials, and very versatile, very easy to use.

Absolutely Top Notch (08/12/2015)

If you need to boresight a rifle, especially a gas gun with an elevated scope/mount (M1A, AR-15, etc.), this is the tool for you. Used this elevator to boresight numerous M1A which require a scope mount which sits approx. 2.375" above the bore. This device makes using an optical collimator a breeze!

Well thought out, well designed and quality craftmanship all in the same package. The BEST part? Made in the U.S.A.

I like the design... (15/08/2018)

This elevator was packaged well and easy to use. I really like how the design has all the specific details covered. I can see how these things can be very robust; however, the one I received will be returned very soon. The horizontal rod on the elevator shaft moves, not much, but it does move. This allows the cross hairs in the optic to move from one side to the other very discretely. Unfortunately, I learned this on the first three rifles I used it on and needless to say, the customer wasn't very happy. I will be ordering another one as soon as my return is completed and hopefully it will be better.

Read 4 more ratings on brownells.com

0 0 1 GBP

Product no.: 100002512
W. FREAR INNOVATIONS COLLIMATOR ELEVATOR
Mfr Part: COLLELEV Precision-manufactured device greatly extends the use and range of your optical collimator for rifles equipped with large objective scopes or scopes mounted in rings high above the centerline of the bore. Very easy to use: Mount your collimator onto the elevation arm, insert your bore spud in the elevator block, then lock with thumbscrew. Insert your spud into the bore and move elevation shaft up or down. Adjust the collimator so its grid view is near the center of the objective lens, and lock collimator height with second thumbscrew.

Notify on availability

Not available.

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The COLLIMATOR ELEVATOR is a precision-manufactured device that enhances the functionality of optical collimators with large scopes or high ring mounts.
It features an easy-to-use design with an elevation arm and elevator block that adjusts in height and locks with thumbscrews for stable collimator positioning.
Constructed from durable materials like aluminum and stainless steel, it is compatible with any bore spud or arbor 1/2" OD or smaller, including expandable arbors.

Attributes

Delivery weight: 0.113kg Shipping height: 5mm Shipping width: 58mm Shipping length: 152mm

Item details

Made in USA

Enhance your optical collimator's range with the COLLIMATOR ELEVATOR by W. Frear Innovations. Easy to use and precision-crafted! 🎯
