POWER CUSTOM
1911 FRAME SUPPORT SYSTEM

713100000

Description
Ratings (6)

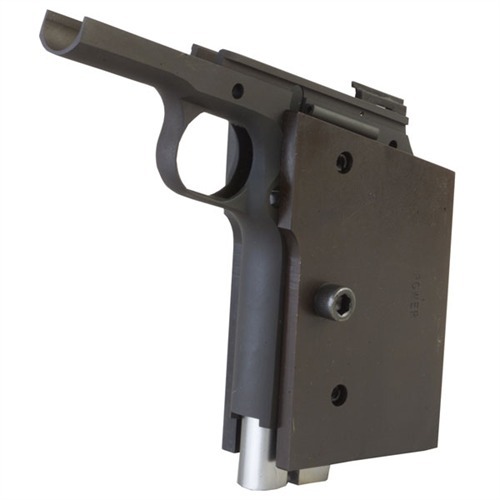

2-Piece Set Prevents Frame Damage During Fitting, Acts As Guide For Stippling

Stops frame crush while performing any of the lapping, heavy hammering or heating and bending alterations that require holding and squeezing the frame in a bench vise. Expandable Magazine Well Support adjusts to fill magazine opening so it can't collapse. Hardened steel Side Plates index off the grip bushings to take vise jaw pressure and dings, plus provide a convenient, damage-proof, straight edge guide for stippling on the front strap. Fits all types and calibers of 1911 Auto frames.

SPECS: Heat-treated steel, blued finish. Mag Well Support - 4" (10cm) long, adjusts to 1-3/8" (3.5cm) wide. Side Plates - 3 " (7.62cm) wide, 4½" (11.4cm) long, ¼" (6.3mm) thick. Includes Allen wrenches, adjustment screws and instructions.

More...

Customer ratings for POWER CUSTOM FRAME SUPPORT SYSTEM

Number of ratings: 6
From brownells.com: 6
Average rating: 3.7

Not worth the time (21/10/2010)

The item is well built, Problems start with the fact that there are 3 screws to tighten the mag well filler only two are accessible and if you the lower screw is block by the lower portion of the frame.Also if you hammer on the frame at all the magwell filler will slide in the mag well and have to be constantly move back.Another problem in the big SCREW sticking out the side it is really hard to get the gun CLAMPED in the vise. you are only able to clamp a small area and the darn thing moves around when beating on the frame say to fit the frame to slide[...]I will pass

Well Designed, Heavy Duty (29/01/2012)

Good Product, well made. Will hold any 1911 frame as long as there is no extended Mag Well on the frame. I like the adjustable stock mag well and it works great if positioned correctly.

Works perfect if you know how to use it. (02/01/2013)

Now if it doesnt fit because of a magwell, Take the magwell off. You can tighten the screws to the magwell filler with it in the gun if you take the grip safety off and tightnen it though the slot in the back of the frame. If you can not problem solve you probably shouldnt be using this tool. With that said this tool will do everything it is desined to do. If you dont have the proper tools to use with it then it will not do what you want. When it comes to any frame alterations you should have knowlege of what you are doing. It can be used several differnt ways to checker or other frame alertrations. Dont expect the tool to set up its self. Yes on some modifications you have to use your brain to set it up. The directions are minimal but the tool is probably not desined to be used by someone who is not capible of thinking outside of the box. Perfect tool and well worth the money.

Solid & Wellbuilt (27/08/2013)

I bought this to use in building a 1911. It would probably work well on an older style gov. frame. It was not usefull to me for my build as I am using a Caspian receiver. The opening in the grip is not as large so the screw that holds it together doesnt line up with the opening. Also I ordered an integral plunger tube. This was designed more to be used without the plunger tube which was another alignment issue. I also had a problem trying to get the mag support into the mag well. The fit was too tight. and there was very little access to tighten the three screws. Of the three wrenches provided two were the right size. the smallest one was too small. The large screw that holds it together would be difficult to position and would interfere with the placement in a vise.

works great for me (07/10/2015)

It works great. I removed the GRIP SCREW BUSHINGS so I could move it up or down, you can also flip the mag well filler.

On some guns you can only tighten two of the screws that tighten the mag well filler which is fine.

I used it so I could tighten up the slide to the frame using Brownells slide fitting bars "080-745-000WB" and used Brownells Auto rail swag punches " 080-805-000WB" the mag well did move on me twice while swaging the rails. I just regrouped and tighten the mag well a little more. It was fine after that. If you take your time while setting it up it will work great.

frame support (02/11/2015)

Great tool, once you figure it out. The mag well filler does not need to be all that tight, if it does move tap it back or adjust it so it does not move. ,You just need to learn how to use the three screws.Instructions could have been better though. A little rosin helps. I ground some relief for the thumb safety and slide stop After fitting the slide fitting .I installed the heaviest recoil spring I have to assemble the barrel /comp and slide to the frame frame. Slide stop installed and thumb safety on safe (up). It held the slide and comp in positions to profile the comp on my mill. Worked great .

Read 6 more ratings on brownells.com

149.9 149.9 1 GBP

Product no.: 713100000
POWER CUSTOM FRAME SUPPORT SYSTEM
Mfr Part: NONE Stops frame crush while performing any of the lapping, heavy hammering or heating and bending alterations that require holding and squeezing the frame in a bench vise. Expandable Magazine Well Support adjusts to fill magazine opening so it can't collapse. Hardened steel Side Plates index off the grip bushings to take vise jaw pressure and dings, plus provide a convenient, damage-proof, straight edge guide for stippling on the front strap. Fits all types and calibers of 1911 Auto frames.

149.9 GBP 0 £149.90 *

Backordered, delivery time approx. 4-12 weeks from the USA warehouse.

Specs: Make: 1911

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

Prevents frame damage during lapping, hammering, or heating and bending by supporting the 1911 Auto frame in a bench vise.
Includes an adjustable Magazine Well Support to prevent the mag opening from collapsing and hardened steel Side Plates to absorb vise pressure.
Designed to fit all types and calibers of 1911 Auto frames and comes with the necessary Allen wrenches, adjustment screws, and instructions for use.

Attributes

Make: 1911 Delivery weight: 1.134kg Shipping height: 46mm Shipping width: 81mm Shipping length: 142mm

Item details

Made in USA

Enhance your 1911 frame modifications with the POWER CUSTOM Frame Support System. 💪 Prevent crush and ensure precision with durable steel components!
