Gunsmith Tools Power Tools & Accessories Drill Bits BROWNELLS CENTER DRILL, #3 7/64", CARBIDE, .25" DIA Support

The Brownells Carbide Center Drill #3 offers precision for frozen screw removal, exceptional durability, and rigidity for effective drilling even in tough materials.

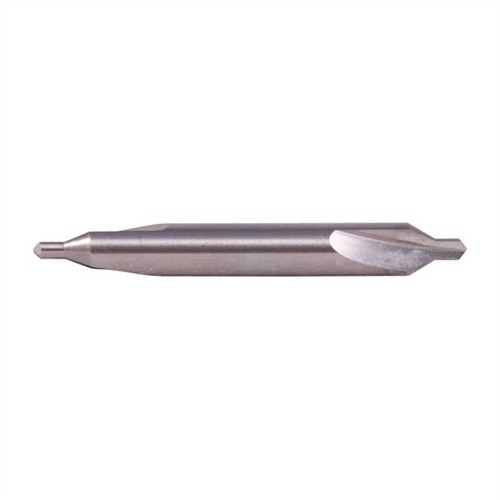

BROWNELLS CENTER DRILL, #3 7/64", CARBIDE, .25" DIA

697604402455 317402003
Variations
Filters:
Variations:

Variations:

The Brownells Carbide Center Drill #3 offers precision for frozen screw removal, exceptional durability, and rigidity for effective drilling even in tough materials.
CARBIDE CENTER DRILL - CENTER DRILL, #3 7/64", CARBIDE, .25" DIA
59.9 GBP 6 £59.90 *
In stock
Bit Size: 7/64 Style: Center Carbides Product no.: 317402003
In stock
59.9 GBP 6 £59.90 *
The Brownells Carbide Center Drill is ideal for frozen screw removal, offering durability and precision without flexing, ensuring a clean start for drilling.
CARBIDE CENTER DRILL - CENTER DRILL, #1 3/64", CARBIDE, .125" DIA
35.9 GBP 13 £35.90 *
In stock
Bit Size: 3/64 Style: Center Carbides Product no.: 317402001
In stock
35.9 GBP 13 £35.90 *
The Brownells Carbide Center Drill is ideal for frozen screw removal, offering exceptional rigidity and durability for precise drilling in tough materials.
CARBIDE CENTER DRILL - CENTER DRILL, #2 5/64", CARBIDE, .187" DIA
49.9 GBP 3 £49.90 *
In stock
Bit Size: 5/64 Style: Center Carbides Product no.: 317402002
In stock
49.9 GBP 3 £49.90 *

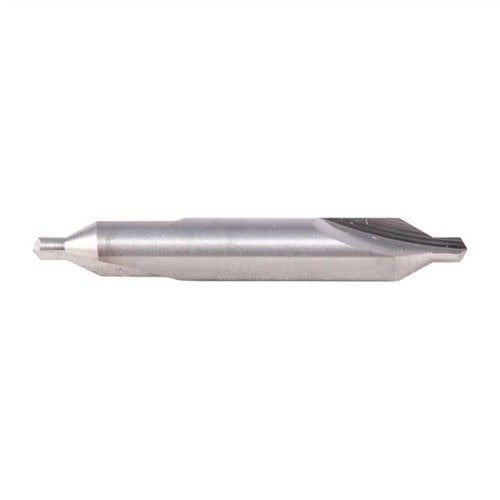

The Brownells #4 Carbide Center Drill is ideal for removing frozen screws, offering durability and precision with minimal flex, ensuring accurate hole starting.
CARBIDE CENTER DRILL - CENTER DRILL, #4 1/8", CARBIDE, .125" DIA
74.9 GBP 1 £74.90 *
In stock
Bit Size: 1/8 Style: Center Carbides Product no.: 317402004
In stock
74.9 GBP 1 £74.90 *
35.9 74.9 4 GBP
59.9 GBP £59.90

Prices inclusive of duty & VAT.

Product no.: 317402003

697604402455 If none of the common methods for removing a frozen screw work, and drilling is in order, these carbide center drills should be used to center and "start" the hole. With the spindle at fairly high speed, bring the center drill down to the screw head and adjust position until centered in the screw. Apply pressure and cut until center hole is deep enough to allow the proper undersized, regular drill bit to start cutting without catching on the screw head slot. Better for drilling broken taps too, for they will cut center holes in even the hardest ones. And, because of the large body mass of the tool relative to the small drill diameter, it is very sturdy and rigid. Will not flex or walk.
In stock 6 pcs. in the USA warehouse
Be the first to rate this product
1
2
3
4
5
6
7
8
9
10+
£59.90

Prices inclusive of duty & VAT.

1
2
3
4
5
6
7
8
9
10+

Delivery time approx. 7-14 days.

100-Day Return Policy

Delivery time approx. 7-14 days.

100-Day Return Policy
No charges until we ship
No charge:
Your credit card will not be charged when you place your order.

No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.

Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
  • Effective for frozen screws
  • Durable carbide construction
  • Precise center hole drilling
Wish List Ask question
35.9 74.9 4 GBP
Description Specification Customers reviews Accessories

BROWNELLS CENTER DRILL, #3 7/64", CARBIDE, .25" DIA

59.9 GBP £59.90

Prices inclusive of duty & VAT.

1
2
3
4
5
6
7
8
9
10+
£59.90

Prices inclusive of duty & VAT.

1
2
3
4
5
6
7
8
9
10+

Delivery time approx. 7-14 days.

100-Day Return Policy

Description:

Essential Tool for Frozen Screw Challenges

If you find yourself struggling with a frozen screw that won't budge, our CARBIDE CENTER DRILL from BROWNELLS is the perfect solution. Designed to provide longevity and precision, this tool is ideal for those tough jobs.

Product Features

  • Type: Center Drill
  • Size: #3, 7/64"
  • Material: Carbide
  • Diameter: .25"

Usage Instructions

If none of the common methods for removing a frozen screw work, and drilling is necessary, these carbide center drills should be employed to centre and "start" the hole. With the spindle at a fairly high speed, bring the center drill down to the screw head and adjust its position until it is centred in the screw. Apply pressure and cut until the centre hole is deep enough to allow the proper undersized, regular drill bit to start cutting without catching on the screw head slot.

Additional Benefits

These drills are also excellent for drilling broken taps, as they can cut centre holes in even the hardest materials. Furthermore, due to the large body mass of the tool relative to the small drill diameter, it is very sturdy and rigid, ensuring that it will not flex or walk during use.

Specifications

  • #1: .125 body/.0468 drill
  • #2: .187 body/.0781 drill
  • #3: .250 body/.1093 drill
  • #4: .312 body/.1250 drill

Equip yourself with the BROWNELLS CARBIDE CENTER DRILL for effective and efficient screw removal. A must-have for any serious gunsmith or DIY enthusiast!



Attributes

  • Bit Size:
    7/64
  • Style:
    Center Carbides
  • Delivery weight: 0.018kg
  • Shipping height: 1mm
  • Shipping width: 83mm
  • Shipping length: 146mm
  • UPC: 697604402455

Item details

Made in USA

Customers reviews

Customer ratings (0)

0 / 5

Variations:

The Brownells Carbide Center Drill #3 offers precision for frozen screw removal, exceptional durability, and rigidity for effective drilling even in tough materials.
CARBIDE CENTER DRILL - CENTER DRILL, #3 7/64", CARBIDE, .25" DIA
59.9 GBP 6 £59.90 *
In stock
Bit Size: 7/64 Style: Center Carbides Product no.: 317402003
In stock
59.9 GBP 6 £59.90 *
The Brownells Carbide Center Drill is ideal for frozen screw removal, offering durability and precision without flexing, ensuring a clean start for drilling.
CARBIDE CENTER DRILL - CENTER DRILL, #1 3/64", CARBIDE, .125" DIA
35.9 GBP 13 £35.90 *
In stock
Bit Size: 3/64 Style: Center Carbides Product no.: 317402001
In stock
35.9 GBP 13 £35.90 *
The Brownells Carbide Center Drill is ideal for frozen screw removal, offering exceptional rigidity and durability for precise drilling in tough materials.
CARBIDE CENTER DRILL - CENTER DRILL, #2 5/64", CARBIDE, .187" DIA
49.9 GBP 3 £49.90 *
In stock
Bit Size: 5/64 Style: Center Carbides Product no.: 317402002
In stock
49.9 GBP 3 £49.90 *
The Brownells #4 Carbide Center Drill is ideal for removing frozen screws, offering durability and precision with minimal flex, ensuring accurate hole starting.
CARBIDE CENTER DRILL - CENTER DRILL, #4 1/8", CARBIDE, .125" DIA
74.9 GBP 1 £74.90 *
In stock
Bit Size: 1/8 Style: Center Carbides Product no.: 317402004
In stock
74.9 GBP 1 £74.90 *
