LYMAN
AMMO CHECKERS MULTIPLE CALIBERS

011516730022 100018224

Description
Ratings (1)

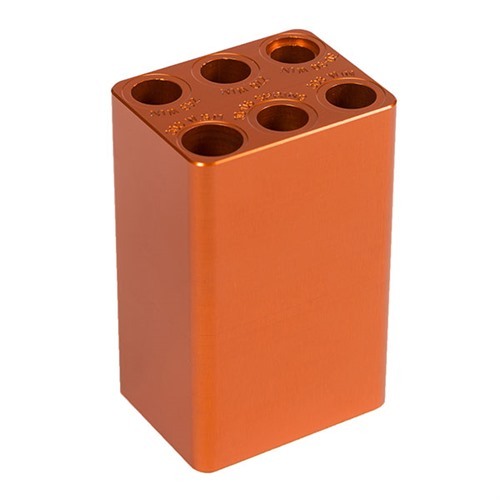

Lyman's Ammo Checkers check the quality and consistency of both reloaded rounds and purchased ammunition. A must for any auto shooter for easy and consistent feed. You can't afford misfeeds, so get the easiest "no-go" gauge available today! These Ammo Checkers are gauges that allow a reloader to quickly confirm that their ammunition will fit in their chamber. Machined from solid blocks of 6061 T6 aircraft grade aluminum and cut with custom tooling to SAAMI minimum chamber dimensions. Ammo Checkers are available in three designs covering most common handgun and rifle calibers. One gauge will work with a variety of calibers. Just drop your loaded rounds in the ammo checker, and if the round fits into the gauge, it will fit in the gun's chamber. Each caliber is clearly engraved on the gauge. Bright orange anodizing makes them easy to find on your reloading bench. Upgrade your reloading area today with Lyman’s Ammo Checkers and begin saving. Handgun Gauge - 380 Auto, 9mm Luger, 38 Super, 40 S&W, 45 ACP, 38 Special/357 Magnum, 44 Magnum/Special, and 45 Long Colt Small Rifle Gauge - 204 Ruger, 22 Hornet, 223 Remington, 22-250 Remington, 300 AAC Blackout, and 7.62x39mm Large Rifle Gauge - 243 Winchester, 270 Winchester, 30-30 Winchester, 308 Winchester, 30-06, 300 WSM

More...

Customer ratings for LYMAN LARGE RIFLE AMMO CHECKER

Number of ratings: 1
From brownells.com: 1
Average rating: 1

Go,no-go gauge a bust! (23/02/2018)

I am a competitive Bullseye pistol shooter and have been reloading for ~10 years. I recently ran into some issues with my 45 ACP reloads, in that they would not cycle in my Golt Gold Cup.I was searching for go, no-go gauges and came across this item. While the majority of the reloading I do for pistols is in 45 ACP, I also reload 9mm and 45 Long Colt. So the prospect of having these calibers in one tool was very appealing. Generally, I would just by the L.E. Wilson gage and be done with it. In this case, I bought both. If the Lyman item worked it would certainly save me some space on my workbench.

The item was packaged well and looked like it would hold up to a lot of use. I had ~20 - 45 ACP loaded rounds, that would not cycle in my pistol, ready to test. I was surprised that all of the rounds easily fit into the Lyman gauge. I turned the gauge over and all of them fell out with ease also. At this point, I took apart my pistol and dropped each round into the barrel. Each round would not completely seat in the chamber. I tried these rounds with another 45 that I had with the same results (Dan Wesson PM-EXP). I then tried the same rounds in the L.E. Wilson gage. Each round would NOT seat into the gage, they were ~3/8 - 1/4 inch shy of seating properly (which is what I would expect since they didn't seat in my barrels). I did the same procedure with rounds that fit perfectly in my pistols. Each gauge, the Lyman and L.E. Wilson, "passed" the loaded rounds with ease.

Takeaway: do not buy this gauge. The SAAMI accuracies that it indicated it is machined to are in question. Right now this is a $30 paperweight. Save your money and buy a L.E. Wilson gage, if you need reliability and consistency, it is well worth it.

NOTE: I addressed the issue with my "failed" 45 ACP rounds but running them through a Lee Carbide Factory Crimp Die. This die sizes the round while it crimps the bullet. Also a good investment.

Read 1 more ratings on brownells.com

54.9 64.9 3 GBP

Product no.: 100018224
LYMAN LARGE RIFLE AMMO CHECKER
Mfr Part: 7833002 011516730022 Lyman's Ammo Checkers check the quality and consistency of both reloaded rounds and purchased ammunition. A must for any auto shooter for easy and consistent feed. You can't afford misfeeds, so get the easiest "no-go" gauge available today! These Ammo Checkers are gauges that allow a reloader to quickly confirm that their ammunition will fit in their chamber. Machined from solid blocks of 6061 T6 aircraft grade aluminum and cut with custom tooling to SAAMI minimum chamber dimensions. Ammo Checkers are available in three designs covering most common handgun and rifle calibers. One gauge will work with a variety of calibers. Just drop your loaded rounds in the ammo checker, and if the round fits into the gauge, it will fit in the gun's chamber. Each caliber is clearly engraved on the gauge. Bright orange anodizing makes them easy to find on your reloading bench. Upgrade your reloading area today with Lyman’s Ammo Checkers and begin saving. Handgun Gauge - 380 Auto, 9mm Luger, 38 Super, 40 S&W, 45 ACP, 38 Special/357 Magnum, 44 Magnum/Special, and 45 Long Colt Small Rifle Gauge - 204 Ruger, 22 Hornet, 223 Remington, 22-250 Remington, 300 AAC Blackout, and 7.62x39mm Large Rifle Gauge - 243 Winchester, 270 Winchester, 30-30 Winchester, 308 Winchester, 30-06, 300 WSM

64.9 GBP 4 £64.90 *

Delivery time approx. 7-14 days.
4 pcs. in the USA warehouse

Specs: Cartridge: 30-06 Springfield, 270 Winchester, 308 Winchester, 243 Winchester, 300 WSM (Winchester Short Mag), 30-30 Winchester

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

Lyman's Ammo Checkers are designed to ensure the quality and consistency of both reloaded and purchased ammunition, preventing misfeeds.
Constructed from 6061 T6 aircraft grade aluminum, these gauges are compatible with multiple calibers and are easy to use by dropping rounds into the checker.
Available in large rifle gauge, they cover various calibers including 30-06 Springfield and 308 Winchester, and feature bright orange anodizing for high visibility.

Attributes

Cartridge: 243 Winchester,270 Winchester,300 WSM (Winchester Short Mag),30-06 Springfield,30-30 Winchester,308 Winchester Delivery weight: 0.476kg Shipping height: 51mm Shipping width: 89mm Shipping length: 173mm UPC : 011516730022

Item details

Made in USA

Product no.: 100018222
LYMAN HANDGUN AMMO CHECKER
Mfr Part: 7833000 011516730008 Lyman's Ammo Checkers check the quality and consistency of both reloaded rounds and purchased ammunition. A must for any auto shooter for easy and consistent feed. You can't afford misfeeds, so get the easiest "no-go" gauge available today! These Ammo Checkers are gauges that allow a reloader to quickly confirm that their ammunition will fit in their chamber. Machined from solid blocks of 6061 T6 aircraft grade aluminum and cut with custom tooling to SAAMI minimum chamber dimensions. Ammo Checkers are available in three designs covering most common handgun and rifle calibers. One gauge will work with a variety of calibers. Just drop your loaded rounds in the ammo checker, and if the round fits into the gauge, it will fit in the gun's chamber. Each caliber is clearly engraved on the gauge. Bright orange anodizing makes them easy to find on your reloading bench. Upgrade your reloading area today with Lyman’s Ammo Checkers and begin saving. Handgun Gauge - 380 Auto, 9mm Luger, 38 Super, 40 S&W, 45 ACP, 38 Special/357 Magnum, 44 Magnum/Special, and 45 Long Colt Small Rifle Gauge - 204 Ruger, 22 Hornet, 223 Remington, 22-250 Remington, 300 AAC Blackout, and 7.62x39mm Large Rifle Gauge - 243 Winchester, 270 Winchester, 30-30 Winchester, 308 Winchester, 30-06, 300 WSM

54.9 GBP 12 £54.90 *

Delivery time approx. 7-14 days.
More than 10 pieces in USA warehouse

Specs: Cartridge: 44 Magnum, 45 Auto (ACP), 9 mm Luger, 380 Auto (ACP), 40 S&W, 45 (Long) Colt, 38 Super

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Product no.: 100018223
LYMAN SMALL RIFLE AMMO CHECKER
Mfr Part: 7833001 011516730015 Lyman's Ammo Checkers check the quality and consistency of both reloaded rounds and purchased ammunition. A must for any auto shooter for easy and consistent feed. You can't afford misfeeds, so get the easiest "no-go" gauge available today! These Ammo Checkers are gauges that allow a reloader to quickly confirm that their ammunition will fit in their chamber. Machined from solid blocks of 6061 T6 aircraft grade aluminum and cut with custom tooling to SAAMI minimum chamber dimensions. Ammo Checkers are available in three designs covering most common handgun and rifle calibers. One gauge will work with a variety of calibers. Just drop your loaded rounds in the ammo checker, and if the round fits into the gauge, it will fit in the gun's chamber. Each caliber is clearly engraved on the gauge. Bright orange anodizing makes them easy to find on your reloading bench. Upgrade your reloading area today with Lyman’s Ammo Checkers and begin saving. Handgun Gauge - 380 Auto, 9mm Luger, 38 Super, 40 S&W, 45 ACP, 38 Special/357 Magnum, 44 Magnum/Special, and 45 Long Colt Small Rifle Gauge - 204 Ruger, 22 Hornet, 223 Remington, 22-250 Remington, 300 AAC Blackout, and 7.62x39mm Large Rifle Gauge - 243 Winchester, 270 Winchester, 30-30 Winchester, 308 Winchester, 30-06, 300 WSM

64.9 GBP 5 £64.90 *
