BROWNELLS
AR-15/M16 MAGAZINE FEED LIP GAUGE

050806109902 080000744

Description
Ratings (1)

Ensure Proper Specs For Reliable Ammo Feed

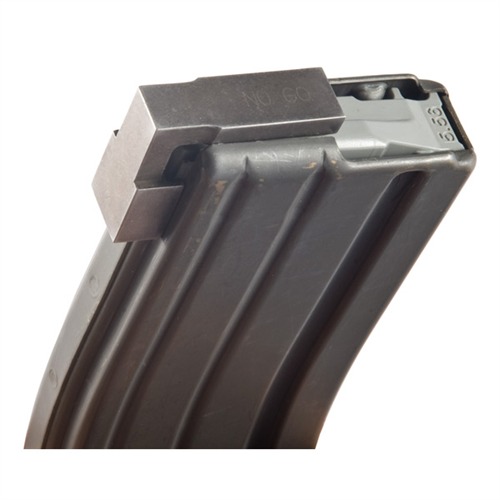

Convenient “Go/No-Go” gauge lets you quickly and accurately check for correct feed lip gap. Helps ensure reliable feeding and prevent weapon failure caused by feed problems. Simply slip over the back of a suspect magazine and lightly press gauge between magazine feed lips. If the gauge passes through feed lips, either discard that magazine or use the Brownells Magazine Feed Lip Tool (available separately) to bring them back into specs and restore reliable feeds. If the gauge won’t pass through the lips, the gap is too narrow and must be widened. Machined from 4140 chrome-moly steel heat hardened to Rc 50-55 for dimensional stability, plus resistance to wear and corrosion.

SPECS: 4140 chrome-moly heat treated steel, in-the-white. Rc 52-60. Go: .454" No-Go: .476". For use on standard .223/5.56mm magazines only.

More...

74.9 74.9 1 GBP

Product no.: 080000744
BROWNELLS AR-15 MAGAZINE LIP GAUGE 050806109902 Convenient “Go/No-Go” gauge lets you quickly and accurately check for correct feed lip gap. Helps ensure reliable feeding and prevent weapon failure caused by feed problems. Simply slip over the back of a suspect magazine and lightly press gauge between magazine feed lips. If the gauge passes through feed lips, either discard that magazine or use the Brownells Magazine Feed Lip Tool (available separately) to bring them back into specs and restore reliable feeds. If the gauge won’t pass through the lips, the gap is too narrow and must be widened. Machined from 4140 chrome-moly steel heat hardened to Rc 50-55 for dimensional stability, plus resistance to wear and corrosion.

74.9 GBP 0 £74.90 *

Backordered, delivery time approx. 4-12 weeks from the USA warehouse.

Specs: Make: AR-15

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The gauge provides a quick "Go/No-Go" assessment for AR-15/M16 magazine feed lip gap, ensuring reliable feeding and preventing weapon failure.
If the gauge fits through the feed lips, the magazine may need adjustment with the Brownells Magazine Feed Lip Tool or be discarded.
Constructed from 4140 chrome-moly steel, heat hardened for durability and corrosion resistance, with specific measurements for Go: .454" and No-Go: .476".

Attributes

Make: AR-15 Delivery weight: 0.091kg Shipping height: 13mm Shipping width: 79mm Shipping length: 150mm UPC : 050806109902

Item details

Made in USA

Ensure reliable feeding with the AR-15 Magazine Feed Lip Gauge from Brownells. 🛠️ Quickly check feed lip gaps for optimal performance!

Description
Ratings (1)

Ensure Proper Specs For Reliable Ammo Feed

SPECS: 4140 chrome-moly heat treated steel, in-the-white. Rc 52-60. Go: .454" No-Go: .476". For use on standard .223/5.56mm magazines only.

More...

Customer ratings for BROWNELLS AR-15 MAGAZINE LIP GAUGE

Number of ratings: 1
From brownells.com: 1
Average rating: 4

Easy to use field gauge for STANAG magaz (14/07/2012)

This feedlip gauge is based on the gauge developed by the US Army. The drawing and dimensions for the gauge are available online so you could make your own using the right machine shop. The gauge essentially starts with a large dimension (marked NO GO) which tapers down to a smaller dimension (marked GO). If the smaller dimension (GO) fits through the feedlips but stops before the larger dimension slips through, this magazine is good. If the larger dimension fits right through the feed lips, the lips need to be adjusted down to tighten that clearance.

I had two Bravo Company Teflon coated magazines give me issues at the range. They were difficult to load using the MagLula and often did not want to feed the first round into the chamber. The cartridges felt very tight in the magazine. I gauged these mags and found the feedlips to barely allow the GO gauge to slip through. The best magazines I own are a set of dry-film D&H Industries magazines and their feedlips barely allowed the NO GO portion to fit through, so the lips were essentially getting close to being loose.

Overall: 4/5 stars, kind of pricey but it is an easy way to check the feed lips on your magazines. I was able to identify the tight magazines and fix them using the Brownells feed lip tool.

Read 1 more ratings on brownells.com
