Home Gunsmith Tools Handgun Tools Barrel Tools Chamfering Tools BROWNELLS BARREL CHAMFERING PLUG GAUGES Support

BROWNELLS

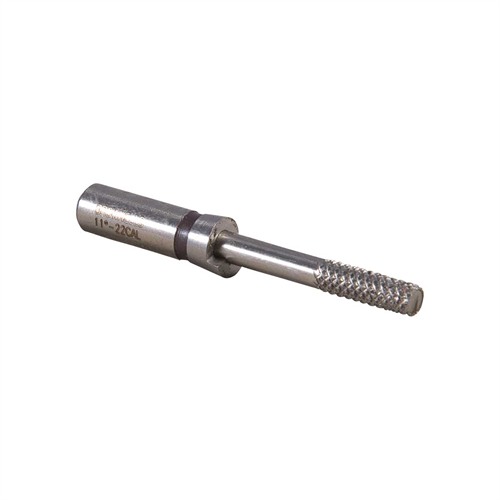

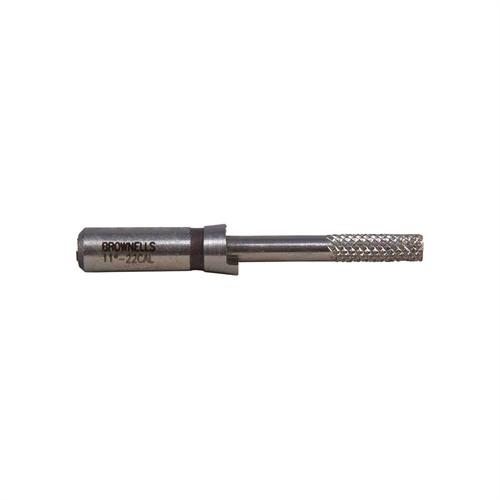

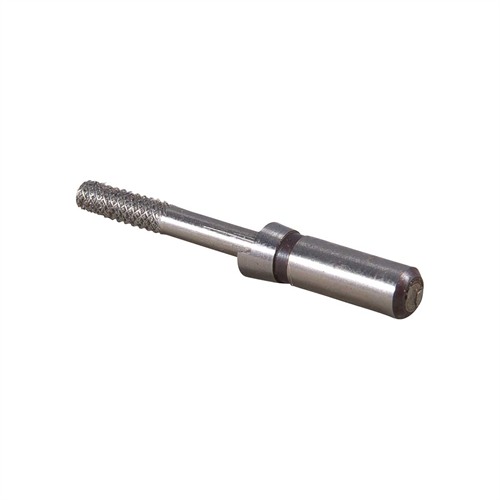

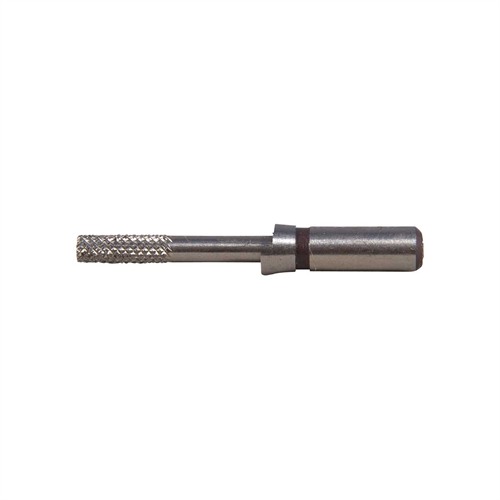

BARREL CHAMFERING PLUG GAUGES

Be the first to rate this product
050806016118 080580122
For Maximum Accuracy & Results Using Pistol Chamfering Tools
There is a very narrow, (.004") throat diameter range where maximum accuracy is obtained. Go smaller or larger and accuracy will suffer. By simply slipping the Plug Gauge into the barrel throat, it s possible to tell at a glance when you are approaching the correct diameter. Warns you before you go too far. Also valuable as a diagnostic tool for guns brought in with accuracy complaints, (designed for chamfers cut with our tools - may not give a correct reading on guns with other degrees of chamfer). Each gauge is self-piloted, precision-ground, hardened and stepped to show minimum and maximum optimum diameters. 11° and 18° Gauge measures both chamfer angles. Sizes .22RF; .32; .38/.357; .38-40/.40; .41; .44; .45. 5° Ruger-Style Gauge available in .38/.357, .44 and .45 caliber only.
SPECS: 1¼" (3.2cm) long. Steel. Instructions included. 11°-18° gauges measure forcing cones with either angle. 5°, .38/.357 gauge is designed for Ruger .38/.357 s which began using this angle about 1983. Complete Set includes the Rimfire Gauge, all ten Centerfire Gauges and Instructions in a Bench Kit Box.
More...
46.9 389.9 12 GBP
Product no.: 080580122
BROWNELLS 11°-18° 22 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016118 11\-18\ .22 Cal. Gauge Only
54.9 GBP 1 £54.90 *
Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse
Specs: Caliber: 22 Caliber (.223-.224) Degree: 11 Degrees, 18 Degrees Make: Universal Handguns
Ask question

Description

11\-18\ .22 Cal. Gauge Only

Attributes

Caliber: 22 Caliber (.223-.224) Degree: 11 Degrees,18 Degrees Make: Universal Handguns Delivery weight: 0.005kg Shipping width: 83mm Shipping length: 146mm UPC : 050806016118

Item details

Made in USA



Product no.: 080580138
BROWNELLS 11°-18° 38/357 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016132 11\-18\ .38/.357 Cal. Gauge Only
46.9 GBP 9 £46.90 *
Delivery time approx. 7-14 days.
9 pcs. in the USA warehouse
Specs: Caliber: 38/357 Caliber (.357-.359) Degree: 11 Degrees, 18 Degrees Make: Universal Handguns
Ask question
Product no.: 080580141
BROWNELLS 11°-18° 41 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016156 11\-18\ .41 Cal. Gauge Only
46.9 GBP 1 £46.90 *
Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse
Specs: Caliber: 41 Caliber (.410-.412) Degree: 11 Degrees, 18 Degrees Make: Universal Handguns
Ask question
Product no.: 080580144
BROWNELLS 11°-18 44 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016163 There is a very narrow, (.004") throat diameter range where maximum accuracy is obtained. Go smaller or larger and accuracy will suffer. By simply slipping the Plug Gauge into the barrel throat, it s possible to tell at a glance when you are approaching the correct diameter. Warns you before you go too far. Also valuable as a diagnostic tool for guns brought in with accuracy complaints, (designed for chamfers cut with our tools - may not give a correct reading on guns with other degrees of chamfer). Each gauge is self-piloted, precision-ground, hardened and stepped to show minimum and maximum optimum diameters. 11° and 18° Gauge measures both chamfer angles. Sizes .22RF; .32; .38/.357; .38-40/.40; .41; .44; .45. 5° Ruger-Style Gauge available in .38/.357, .44 and .45 caliber only.
46.9 GBP 1 £46.90 *
Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse
Specs: Caliber: 44 Caliber (.429-.430) Degree: 11 Degrees, 18 Degrees Make: Universal Handguns
Ask question
Product no.: 080580145
BROWNELLS 11°-18° 45 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016170 11\-18\ .45 .45 Cal. Gauge Only
46.9 GBP 8 £46.90 *
Delivery time approx. 7-14 days.
8 pcs. in the USA warehouse
Specs: Caliber: 45 Caliber (.451-.454) Degree: 11 Degrees, 18 Degrees Make: Universal Handguns
Ask question
Product no.: 080580538
BROWNELLS 5° 38/357 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016187 5\ .38/.357 Cal. Gauge Only
46.9 GBP 1 £46.90 *
Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse
Specs: Caliber: 38/357 Caliber (.357-.359) Degree: 5 Degrees Make: Universal Handguns
Ask question
Product no.: 080580539
BROWNELLS 5° 44 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016194 5\ .44 Cal. Gauge Only
47.9 GBP 1 £47.90 *
Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse
Specs: Caliber: 44 Caliber (.429-.430) Degree: 5 Degrees Make: Universal Handguns
Ask question
Product no.: 080580540
BROWNELLS 5° 45 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016200 5\ .45 Cal. Gauge Only
47.9 GBP 1 £47.90 *
Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse
Specs: Caliber: 45 Caliber (.451-.454) Degree: 5 Degrees Make: Universal Handguns
Ask question
Product no.: 080580541
BROWNELLS CENTERFIRE PLUG GAUGE ONLY 5° .44 & .45 ADD-ON SET 050806016217 Centerfire Plug Gauge Only 5\ .44 & .45 Add-On Set
94.9 GBP 1 £94.90 *
Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse
Specs: Caliber: 44 Caliber (.429-.430), 45 Caliber (.451-.454) Degree: 5 Degrees Make: Universal Handguns
Ask question
Product no.: 080580140
BROWNELLS 11°-18° 10MM/40 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016149 There is a very narrow, (.004") throat diameter range where maximum accuracy is obtained. Go smaller or larger and accuracy will suffer. By simply slipping the Plug Gauge into the barrel throat, it s possible to tell at a glance when you are approaching the correct diameter. Warns you before you go too far. Also valuable as a diagnostic tool for guns brought in with accuracy complaints, (designed for chamfers cut with our tools - may not give a correct reading on guns with other degrees of chamfer). Each gauge is self-piloted, precision-ground, hardened and stepped to show minimum and maximum optimum diameters. 11° and 18° Gauge measures both chamfer angles. Sizes .22RF; .32; .38/.357; .38-40/.40; .41; .44; .45. 5° Ruger-Style Gauge available in .38/.357, .44 and .45 caliber only.
46.9 GBP 1 £46.90 *
Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse
Specs: Caliber: 40/10 mm (.400-.401) Degree: 11 Degrees, 18 Degrees Make: Universal Handguns
Ask question
Product no.: 080579100
BROWNELLS COMPLETE CHAMFER PLUG GAUGE SET 050806101135 Complete Chamfer Plug Gauge Set
389.9 GBP 0 £389.90 *
Backordered, delivery time approx. 4-12 weeks from the USA warehouse.
Specs: Caliber: 38/357 Caliber (.357-.359), 41 Caliber (.410-.412), 44 Caliber (.429-.430), 45 Caliber (.451-.454), 40/10 mm (.400-.401), 22 Caliber (.223-.224), 32 Caliber (.312-.313) Degree: 5 Degrees, 11 Degrees, 18 Degrees Make: Universal Handguns
Ask question
Product no.: 080580132
BROWNELLS 11°-18° 32 CALIBER BARREL CHAMFERING PLUG GAUGE ONLY 050806016125 11\-18\ .32 Cal. Gauge Only
46.9 GBP 0 £46.90 *
Backordered, delivery time approx. 4-12 weeks from the USA warehouse.
Specs: Caliber: 32 Caliber (.312-.313) Degree: 11 Degrees, 18 Degrees Make: Universal Handguns
Ask question

Discover the BROWNELLS Barrel Chamfering Plug Gauge for 22 Caliber. Perfect for precision work! 🔧 Get yours today!

For Maximum Accuracy & Results Using Pistol Chamfering Tools
There is a very narrow, (.004") throat diameter range where maximum accuracy is obtained. Go smaller or larger and accuracy will suffer. By simply slipping the Plug Gauge into the barrel throat, it s possible to tell at a glance when you are approaching the correct diameter. Warns you before you go too far. Also valuable as a diagnostic tool for guns brought in with accuracy complaints, (designed for chamfers cut with our tools - may not give a correct reading on guns with other degrees of chamfer). Each gauge is self-piloted, precision-ground, hardened and stepped to show minimum and maximum optimum diameters. 11° and 18° Gauge measures both chamfer angles. Sizes .22RF; .32; .38/.357; .38-40/.40; .41; .44; .45. 5° Ruger-Style Gauge available in .38/.357, .44 and .45 caliber only.
SPECS: 1¼" (3.2cm) long. Steel. Instructions included. 11°-18° gauges measure forcing cones with either angle. 5°, .38/.357 gauge is designed for Ruger .38/.357 s which began using this angle about 1983. Complete Set includes the Rimfire Gauge, all ten Centerfire Gauges and Instructions in a Bench Kit Box.
