YANKEE HILL MACHINE CO., INC.

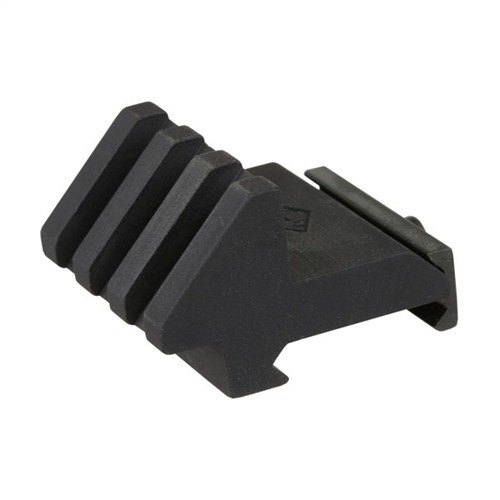

DOVETAIL ANGLE MOUNT

100002095

Description
Ratings (6)

Solid, Offset Mount For Lights & Lasers; Prevents Interference With Primary Sights

Compact, lightweight clamp-on rail allows light, laser, or iron sights to be mounted at a 45 degree offset to keep main sights or optics clear. Accepts MIL-STD 1913 Picatinny or Weaver style mounts and is available in 1-slot and 3-slot models. Machined aluminum clamping jaw provides superior holding strength with minimal wight increase.

Aircraft grade aluminum, matte black, Mil-Spec, hard coat anodized. 3-Slot: 1-3/8" (3.5cm) long, 1 3/8" wide, 7/8" high. 1.2 oz. 1-Slot: ¾” (1.9cm) long. 1-3/8" wide, 7/8" (2.2cm) high. 0.7 oz. (34 g) wt.

More...

Customer ratings for YANKEE HILL MACHINE CO., INC. DOVETAIL ANGLE MOUNT

Number of ratings: 6
From brownells.com: 6
Average rating: 4

Works great, simple to install (17/11/2009)

Easy to install on a Picatinny Rail. I used it to mount a flashlight offset of the 12 o'clock position on my AR equipped with a rail so it did not block my scope. Works as advertised.

Best Buy (23/01/2011)

Typical YHM quality at a fair price. I think that half my gun is YHM by now... Used it for an off-set mount on a back-up red dot next to my scope worked fine once the correct riser was found to mount under the sight. For this purpose, it was much less expensive than purchasing something like a purpose-built JP offset mount.

Unique set up (03/10/2011)

The YHM dovetail angle mount is the perfect accessory when your rail space is not enough. It will accommodate light or laser at a perfect angle where it cannot be blocked by the sight. Mounted this accessory just behind the YHM bipod adapter in my custom 1022 SOG using the factory laminated stock for bull barrel. A light or laser can be installed with the bipod detached. Quality is good and the price is just right.

One mounting bolt. (19/01/2012)

Look for alternates.

Flash light mount (21/01/2012)

I used this product to off-set and InSight small light off-axis from my sight plane. It works well enough. Pros: no sharp edges, works as intended. Cons: Not truly 1913 mil.spec (as can be seen when mounted on a mil spec rail), and the tiny locking screw protrudes. For what I'm using it for, it's fine, but I would NOT get two of these to mount an expensive (and heavier) optic off axis. I may work, but I'd want to see a better locking mechanism, and better mil spec tolerance before trusting it to hold something expensive.

Will not work with secondary sight (09/09/2014)

The mount is adequate for mounting a light, laser, or whatever out of the way. However it is not offset far enough to mount even a mini prism sight next to your scope. It will only work if you mount it far enough forward to clear the scope or if you are running a tactical style scope with no bell. Mine went in to the spare parts box. They all should give the dimensions of the mount in the description so you can compare different brands.

Read 6 more ratings on brownells.com

0 0 1 GBP

Product no.: 100002095
YANKEE HILL MACHINE CO., INC. DOVETAIL ANGLE MOUNT
Mfr Part: YHM-9690A Compact, lightweight clamp-on rail allows light, laser, or iron sights to be mounted at a 45 degree offset to keep main sights or optics clear. Accepts MIL-STD 1913 Picatinny or Weaver style mounts and is available in 1-slot and 3-slot models. Machined aluminum clamping jaw provides superior holding strength with minimal wight increase.

Notify on availability

Not available.

Specs: Color: Matte Black Material: Aluminum Number of Bases: 1-Piece Style: Weaver

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The DOVETAIL ANGLE MOUNT by YANKEE HILL MACHINE CO., INC. is a compact and lightweight solution for mounting accessories like lights, lasers, or iron sights at a 45-degree offset without obstructing main sights or optics.
It is compatible with MIL-STD 1913 Picatinny or Weaver style mounts and comes in both 1-slot and 3-slot models, featuring a machined aluminum clamping jaw for strong hold with minimal weight increase.
The mount is constructed from aircraft-grade aluminum with a matte black, Mil-Spec, hard coat anodized finish, with the 3-slot version measuring 1.2 oz in weight and the 1-slot version weighing 0.7 oz.

Attributes

Colour: Matte Black Material: Aluminum Number of Bases: 1-Piece Style: Weaver Delivery weight: 0.036kg Shipping height: 23mm Shipping width: 51mm Shipping length: 61mm

Item details

Made in USA

Discover the Dovetail Angle Mount by Yankee Hill Machine Co. 🛠️ A lightweight, compact solution for mounting sights at a 45° offset.
