APEX TACTICAL SPECIALTIES INC FN 509 DISASSEMBLY FIXTURE
Support
APEX TACTICAL SPECIALTIES INC
FN 509 DISASSEMBLY FIXTURE
74.9
74.9
1
GBP
Product no.: 100042880
APEX TACTICAL SPECIALTIES INC FN 509/FNS-C DISASSEMBLY FIXTURE

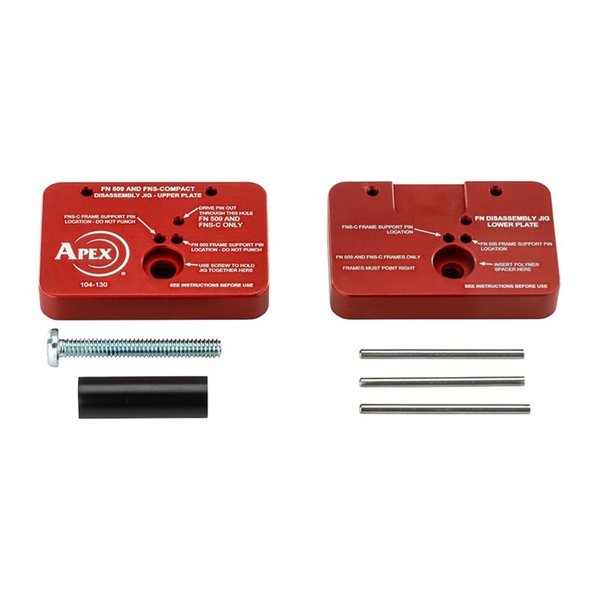

Mfr Part: 104-130 854263007883 Working on an FN 509? Then this is the likely the most valuable tool you could add to your work bench. The Apex FN Disassembly Fixture is designed to properly hold the FN 509, or FNS Compact, pistol frame to locate a pin punch for removal of the unlocking block pin, which is the most difficult part of the disassembly process. Why you need this indispensable tool: This tool will make life easy when working on the FN 509, or FNS-C Cautions: Must be used on a solid surface (i.e. vise anvil, concrete floor or extremely solid work bench over a table leg) DO NOT USE ON YOUR KITCHEN TABLE OR COUNTER TOP, THESE SURFACES ARE NOT STABLE ENOUGH Does Not Fit These Guns: Not for use with the FNS or FNS Longslide models. Not intended for use on the FN X-Series pistols. What's Included: 1 ea. Disassembly Lower Jig Plate 1 ea. FN 509 & FNS-C Upper Jig Plate 1 ea. 2” Alignment Screw 1 ea. Polymer Spacer 3 ea. 1/8” Fixture Pin Installation Resources: Small Hammer – between 6 to 10 oz is recommended Common (Flat Blade) Screw Driver 3/32” Pin Punch – recommend no longer than 1” of 3/32” to prevent deflection
APEX TACTICAL SPECIALTIES INC FN 509/FNS-C DISASSEMBLY FIXTURE
Mfr Part: 104-130 854263007883 Working on an FN 509? Then this is the likely the most valuable tool you could add to your work bench. The Apex FN Disassembly Fixture is designed to properly hold the FN 509, or FNS Compact, pistol frame to locate a pin punch for removal of the unlocking block pin, which is the most difficult part of the disassembly process. Why you need this indispensable tool: This tool will make life easy when working on the FN 509, or FNS-C Cautions: Must be used on a solid surface (i.e. vise anvil, concrete floor or extremely solid work bench over a table leg) DO NOT USE ON YOUR KITCHEN TABLE OR COUNTER TOP, THESE SURFACES ARE NOT STABLE ENOUGH Does Not Fit These Guns: Not for use with the FNS or FNS Longslide models. Not intended for use on the FN X-Series pistols. What's Included: 1 ea. Disassembly Lower Jig Plate 1 ea. FN 509 & FNS-C Upper Jig Plate 1 ea. 2” Alignment Screw 1 ea. Polymer Spacer 3 ea. 1/8” Fixture Pin Installation Resources: Small Hammer – between 6 to 10 oz is recommended Common (Flat Blade) Screw Driver 3/32” Pin Punch – recommend no longer than 1” of 3/32” to prevent deflection
Specs:
Make: FN
Model: 509, FNS-C
Simplify your FN 509 disassembly with the APEX Tactical Fixture! 🛠️ Essential for easy pin removal and maintenance. Get yours now!
