BROWNELLS
GUNSMITH REPLACEABLE PIN PUNCH SET

050806010307 080510691

Description
Ratings (7)

Take The Blow($) Out Of Replacing Pin Punches

Finally! What we think is the answer to the pin punch headache that has plagued us - and every other gunsmith who has ever knocked out a gun pin, had the punch break or bend, and been out of business until a new one could be made or ordered. Now - Just Replace The Tip!Handles, with removable knurled-chuck to hold punch, are made of powerful, fatigueproof C.R.S. Steel - Tensile strength of over 140,000 psi (Min.). Replaceable Punch - the secret of the tool. These are special, tool steel, bevel-headed punches designed for the tool, die and mold manufacturers as perforators, punches, ejectors and core pins. Oil hardened to Rc 58-60. Heads are annealed to Rc 42-45. They come in two lengths and can be ground down to exact length required - custom punches with minimum investment.

SPECS: Handle 3" (7.6cm) long x 3/8" (9.5mm) diameter. Pins are 2" (5.1cm) or 2½" (6.3cm) long. Replacement Pin Punch Sets include the following pin sizes: 0.039", 0.060", and 0.091" in either 2” or 2 ½” lengths.

More...

Customer ratings for BROWNELLS REPLACEMENT PINS, 2-1/2"X.091" 6 PACK

Number of ratings: 7
From brownells.com: 7
Average rating: 3

Versatile and strong (06/04/2015)

Great punches. You do have to take care if a pin is sticking up as with any flat nose punch. I cut the long pins to various lengths In approximately 3/8ths increments to drive stubborn pins out and to prevent bending the drift pins. Been using them for 30 plus years and just ordered all new pins........DBW

Great for Micro Pins (08/11/2012)

Superb quality! Just what I needed for a Micro Pin on a Browning Buckmark rear sight.

Wonderful idea ---- but! (08/06/2012)

Wonderful concept but the execution is worse than poor. Every time you try to use any of the punches, the punch retainer comes loose. Just one or two taps with a small hammer and the tip is loose and wobbeling all over the place. Could have been made a lot better easily.

Work great (18/09/2015)

The problem with all punches in these sizes are they are fragile, but with this, you just replace the tips instead of the whole punch. I generally found them a little long but you can make them shorter. A little thread tape on the head will keep them from loosening. I really like they have a square shoulder so you don't damage the hole like with tapered punches if you over drive. Wish they made brass replacements (so 4 stars), but I bought some hard brass rod of the same diameters, cut to length, crimp one end and made my own. Now I always have a straight small diameter punch in a choice of sized in steel or brass. Fantastic

Good, but needs attention (18/05/2011)

The largest of the three would not assemble until I ran an appropriate size drill thru the retainer first. The hole in the retainer was actually a couple thousands smaller than the pin.

Good idea--Poor execution (21/07/2011)

The medium size punch broke the first time I hit it.

Used to be better, now cheapened up (03/03/2013)

I bought some of these to replace a couple from my old set that went walking. The nuts are now made shorter, to economize no doubt,but they don't seem to hold the punch tips so well as the old ones. Progress I guess but I'll keep better care of my old ones now.

Read 7 more ratings on brownells.com

19.9 29.9 12 GBP

Product no.: 080510691

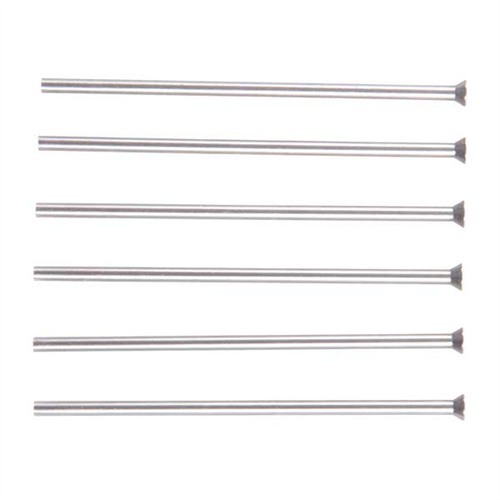

BROWNELLS REPLACEMENT PINS, 2-1/2"X.091" 6 PACK 050806010307 Replacement Pins, 2-1/2"x.091"

29.9 GBP 1 £29.90 *

Delivery time approx. 7-14 days.
1 pcs. in the USA warehouse

Specs: Material: Steel Size: .091 in Style: Replacement Quantity: 6
