MANSON PRECISION
TRU-CHOKE™-STYLE TOOLING

513142000
Fast, Accurate Choke Tube Installations Using Reamers From Dave Manson
A quick and easy method to install choke tubes using a lathe (can be done by hand, however, a lathe gives superior results). Tap and reamer are precision ground from high speed steel and use the same interchangeable pilot bushings. Reamer has an enhanced end relief that provides a faster cut. Pilot bushings are available in diameter increments of .001", and are 2" long for accurate bore alignment. Factory instructions are included. Note: Read and understand the installation requirements before proceeding. For best results, remove any existing choke with the Angle Blade Expanding Choke Reamer prior to using the Loon Lake Choke reamer. Click here for proper installation requirements. Use to thread barrels that are too thin to accept Win-Choke®-style tubes. The O.D. is .020" smaller than that required for Win-Choke tubes so they may be installed in proportionally thinner barrels.

SPECS: 12 Gauge has .795"-44 tpi. Accepts standard (not thinwall) Tru-Choke tubes. 20 gauge has .675"-44 tpi.

299.9 359.9 4 GBP
Product no.: 513142000

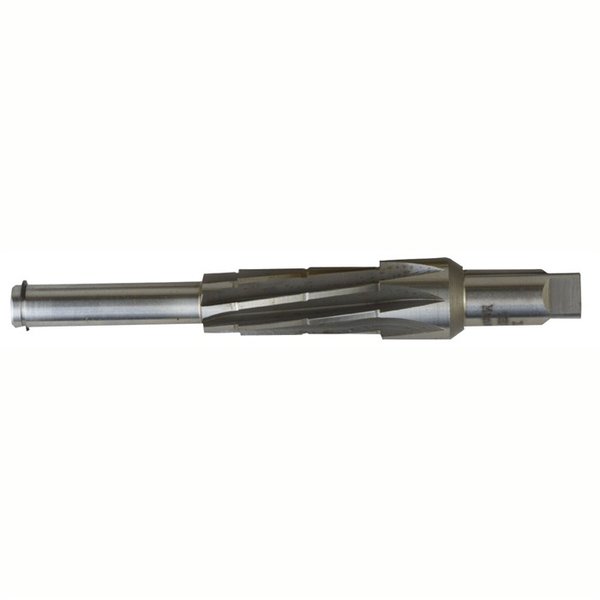

MANSON PRECISION 12 GAUGE REAMER
Mfr Part: TC12GAR A quick and easy method to install choke tubes using a lathe (can be done by hand, however, a lathe gives superior results). Tap and reamer are precision ground from high speed steel and use the same interchangeable pilot bushings. Reamer has an enhanced end relief that provides a faster cut. Pilot bushings are available in diameter increments of .001", and are 2" long for accurate bore alignment. Factory instructions are included. Note: Read and understand the installation requirements before proceeding. For best results, remove any existing choke with the Angle Blade Expanding Choke Reamer prior to using the Loon Lake Choke reamer. Click here for proper installation requirements. Use to thread barrels that are too thin to accept Win-Choke®-style tubes. The O.D. is .020" smaller than that required for Win-Choke tubes so they may be installed in proportionally thinner barrels.
299.9 GBP 3 £299.90 *
Delivery time approx. 7-14 days.
3 pcs. in the USA warehouse
Specs: Gauge: 12 Gauge Make: Universal Shotguns

Top takeaways

  1. The TRU-CHOKE™-STYLE TOOLING MANSON PRECISION 12 GAUGE REAMER allows for the quick and easy installation of choke tubes, preferably using a lathe for superior results.
  2. It includes precision ground tap and reamer from high-speed steel, with interchangeable pilot bushings for accurate bore alignment.
  3. Designed for 12 Gauge shotguns, it can thread barrels too thin for Win-Choke®-style tubes, with an O.D. that is .020" smaller to fit thinner barrels.

Attributes

Gauge: 12 Gauge Make: Universal Shotguns Delivery weight: 0.272kg Shipping height: 25mm Shipping width: 33mm Shipping length: 163mm

Item details

Made in USA



Product no.: 513000058
MANSON PRECISION 20 GAUGE TAP
Mfr Part: TC20GAT 20 Gauge Tap
359.9 GBP 2 £359.90 *
Delivery time approx. 7-14 days.
2 pcs. in the USA warehouse
Specs: Gauge: 20 Gauge Make: Universal Shotguns
Product no.: 513000057
MANSON PRECISION 20 GAUGE REAMER
Mfr Part: TC20GAR A quick and easy method to install choke tubes using a lathe (can be done by hand, however, a lathe gives superior results). Tap and reamer are precision ground from high speed steel and use the same interchangeable pilot bushings. Reamer has an enhanced end relief that provides a faster cut. Pilot bushings are available in diameter increments of .001", and are 2" long for accurate bore alignment. Factory instructions are included. Note: Read and understand the installation requirements before proceeding. For best results, remove any existing choke with the Angle Blade Expanding Choke Reamer prior to using the Loon Lake Choke reamer. Click here for proper installation requirements. Use to thread barrels that are too thin to accept Win-Choke®-style tubes. The O.D. is .020" smaller than that required for Win-Choke tubes so they may be installed in proportionally thinner barrels.
299.9 GBP 2 £299.90 *
Delivery time approx. 7-14 days.
2 pcs. in the USA warehouse
Specs: Gauge: 20 Gauge Make: Universal Shotguns
Product no.: 513144000
MANSON PRECISION 12 GAUGE TAP
Mfr Part: TC12GAT A quick and easy method to install choke tubes using a lathe (can be done by hand, however, a lathe gives superior results). Tap and reamer are precision ground from high speed steel and use the same interchangeable pilot bushings. Reamer has an enhanced end relief that provides a faster cut. Pilot bushings are available in diameter increments of .001", and are 2" long for accurate bore alignment. Factory instructions are included. Note: Read and understand the installation requirements before proceeding. For best results, remove any existing choke with the Angle Blade Expanding Choke Reamer prior to using the Loon Lake Choke reamer. Click here for proper installation requirements. Use to thread barrels that are too thin to accept Win-Choke®-style tubes. The O.D. is .020" smaller than that required for Win-Choke tubes so they may be installed in proportionally thinner barrels.
309.9 GBP 0 £309.90 *
Backordered, delivery time approx. 4-12 weeks from the USA warehouse.
Specs: Gauge: 12 Gauge Make: Universal Shotguns

Easily install choke tubes with the TRU-CHOKE™-STYLE Tooling Manson Precision 12 Gauge Reamer. 🛠️ Achieve superior results with precision!

Fast, Accurate Choke Tube Installations Using Reamers From Dave Manson
A quick and easy method to install choke tubes using a lathe (can be done by hand, however, a lathe gives superior results). Tap and reamer are precision ground from high speed steel and use the same interchangeable pilot bushings. Reamer has an enhanced end relief that provides a faster cut. Pilot bushings are available in diameter increments of .001", and are 2" long for accurate bore alignment. Factory instructions are included. Note: Read and understand the installation requirements before proceeding. For best results, remove any existing choke with the Angle Blade Expanding Choke Reamer prior to using the Loon Lake Choke reamer. Click here for proper installation requirements. Use to thread barrels that are too thin to accept Win-Choke®-style tubes. The O.D. is .020" smaller than that required for Win-Choke tubes so they may be installed in proportionally thinner barrels.

SPECS: 12 Gauge has .795"-44 tpi. Accepts standard (not thinwall) Tru-Choke tubes. 20 gauge has .675"-44 tpi.
