SINCLAIR INTERNATIONAL
NT-1500 DELUXE NECK TURNING TOOL

749011559

Description
Ratings (2)

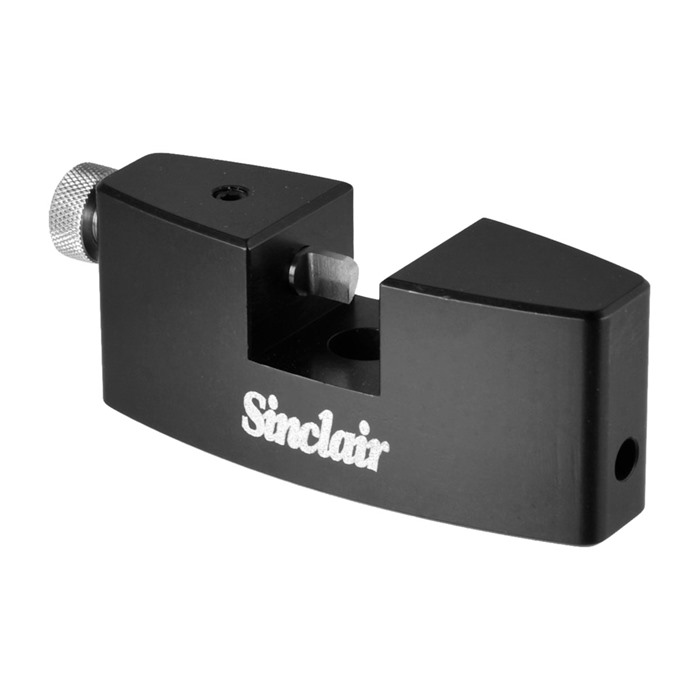

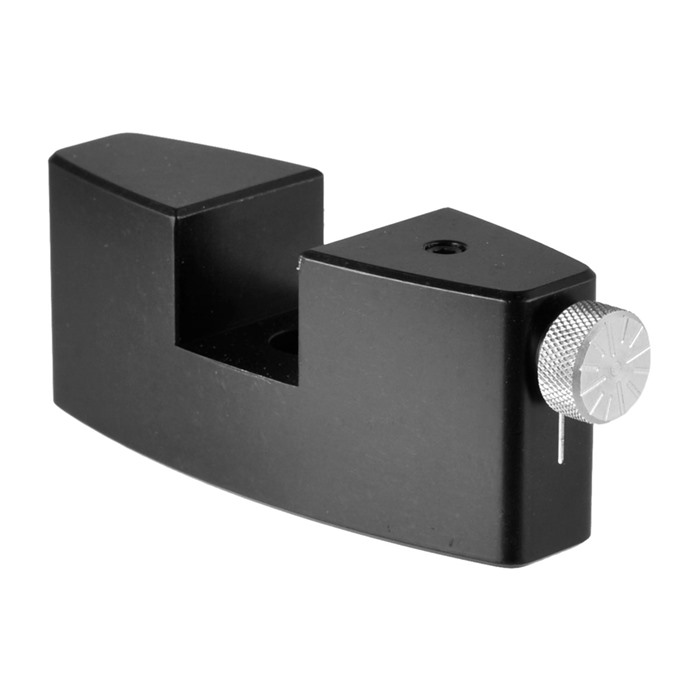

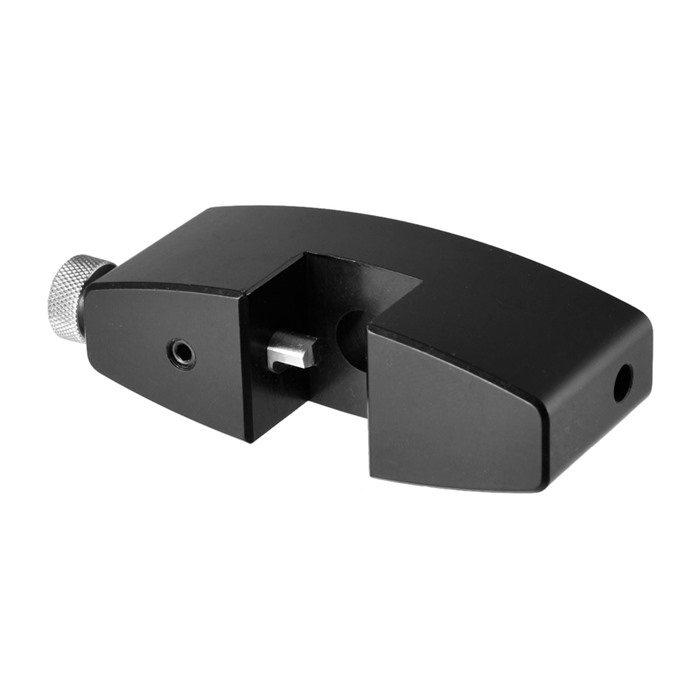

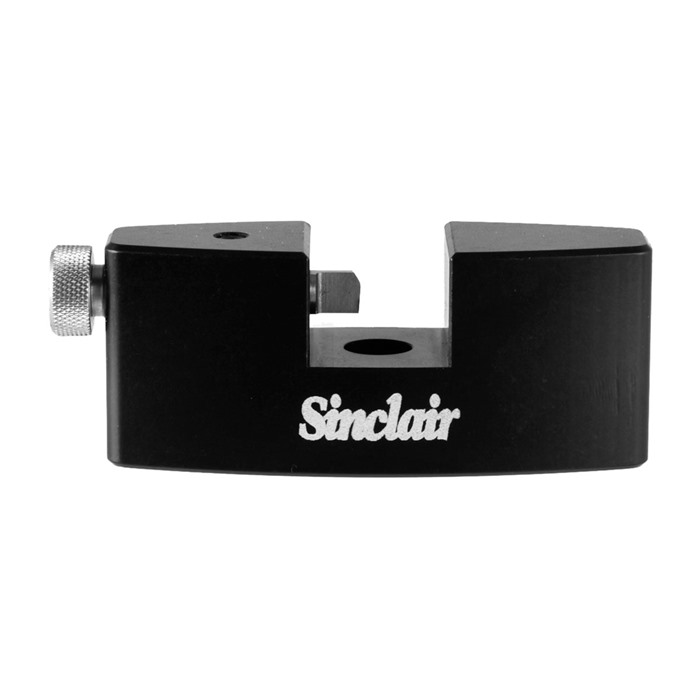

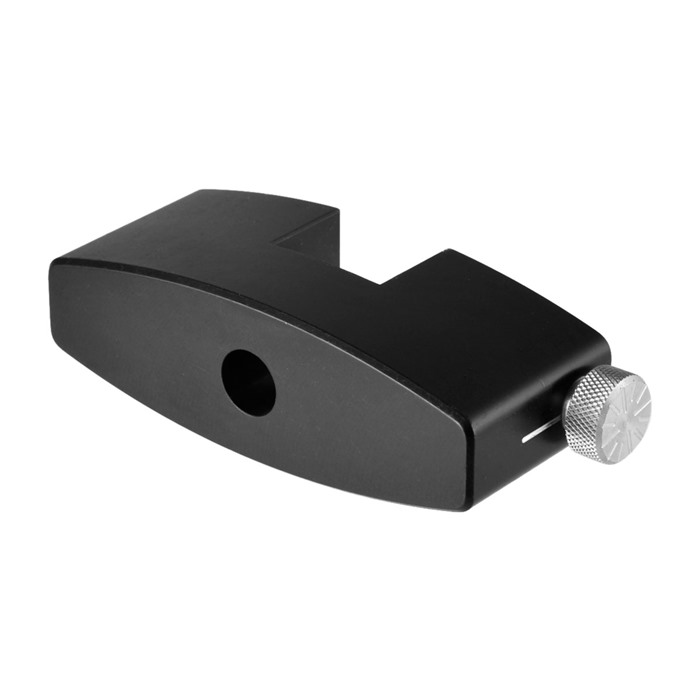

The Sinclair NT-1500 Neck Turning Tool’s ergonomic exterior is a slightly scaled down version of the premium model and features fine (80 threads per inch) adjustment on the cutter depth screw. The adjustment screw is engraved with hash-marks for easy fine-tune adjustment. Each mark on the adjustment screw corresponds to an approximate 0.001" change in cutting depth (0.00104" to be exact), making it extremely easy to adjust well within 0.0005" of a specific neck wall diameter. Fine cutting depth adjustment (0.001” Adjustments) High speed tool steel cutter Hard coat anodized finish The NT-1500 comes either by itself, or with the Sinclair Neck Turning Handle included and utilizes the same high speed tool steel cutter as our other neck turning tools. Excepts all Sinclair Mandrels .17 thru 338.

More...

Customer ratings for SINCLAIR INTERNATIONAL DELUXE NECK TURNING TOOL ONLY

Number of ratings: 2
From brownells.com: 2
Average rating: 2.5

Great tool, bad mandrels (avail. sizes) (10/05/2013)

IMO, neck turning works best (wall thickness consistency) AFTER the necks have been expanded (NOT sized down).

This tool works very well in getting that job done, the problem is that the available stock mandrels allow far too much slop/play as the brass is being turned to get the results the tool is capable of.

For example, I am using it for .338LM and even WITHOUT expanding the necks, the only available .335"dia mandrel allows far too much slop; expanding the necks to get a ROUND, CONSISTENT neck for turning purposes makes it far worse.

As such I had a custom mandrel made locally to get the job done which cost me as much as the tool itself.

And while I understand that keeping the tool simple and therefor keeping the cost down was probably a primary consideration, the unidirectional depth setting aspect of the tool can be tedious, however the setting is repeatable so it's not too bad to back off and approach your desired depth again.

Sent it back (25/08/2014)

Bought the tool, expander die and various mandrels. Liked everything about the system except the actual cutter. Unfortunately this makes the entire system unusable for me. Cuts a very small groove that made it impossible to get a nice clean even cut for me. I imagine it would work great if you had a lathe. I also own a Marquart and K&M tool both of which give a much smoother cut.

Read 2 more ratings on brownells.com

104.9 119.9 2 GBP

Product no.: 749011559
SINCLAIR INTERNATIONAL DELUXE NECK TURNING TOOL ONLY
Mfr Part: NT1550 Sinclair Model 1500 Neck Turning Tool w/o Handle

104.9 GBP 3 £104.90 *

Delivery time approx. 7-14 days.
3 pcs. in the USA warehouse

Specs: Caliber: 22 Caliber (.223-.224), 17 Caliber (.172), 20 Caliber (.204), 243/6 mm (.243), 264/6.5 mm (.264), 284/7 mm (.284), 30 Caliber (.308), 25 Caliber (.257), 270/6.8 mm (.277), 303/7.7 mm (.311-.312), 7.62x39 (.310)

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Description

Sinclair Model 1500 Neck Turning Tool w/o Handle

Attributes

Caliber: 17 Caliber (.172),20 Caliber (.204),22 Caliber (.223-.224),243/6 mm (.243),25 Caliber (.257),264/6.5 mm (.264),270/6.8 mm (.277),284/7 mm (.284),30 Caliber (.308),7.62x39 (.310),303/7.7 mm (.311-.312) Delivery weight: 0.136kg Shipping height: 36mm Shipping width: 74mm Shipping length: 114mm

Item details

Made in USA

Product no.: 749011558
SINCLAIR INTERNATIONAL DELUXE NECK TURNING TOOL WITH HANDLE
Mfr Part: NT1500 Sinclair Model 1500 Neck Turning Tool

119.9 GBP 0 £119.90 *

Backordered, delivery time approx. 4-12 weeks from the USA warehouse.

Specs: Caliber: 22 Caliber (.223-.224), 17 Caliber (.172), 20 Caliber (.204), 243/6 mm (.243), 264/6.5 mm (.264), 284/7 mm (.284), 30 Caliber (.308), 338 Caliber (.338), 25 Caliber (.257), 270/6.8 mm (.277), 8 mm (.323)
